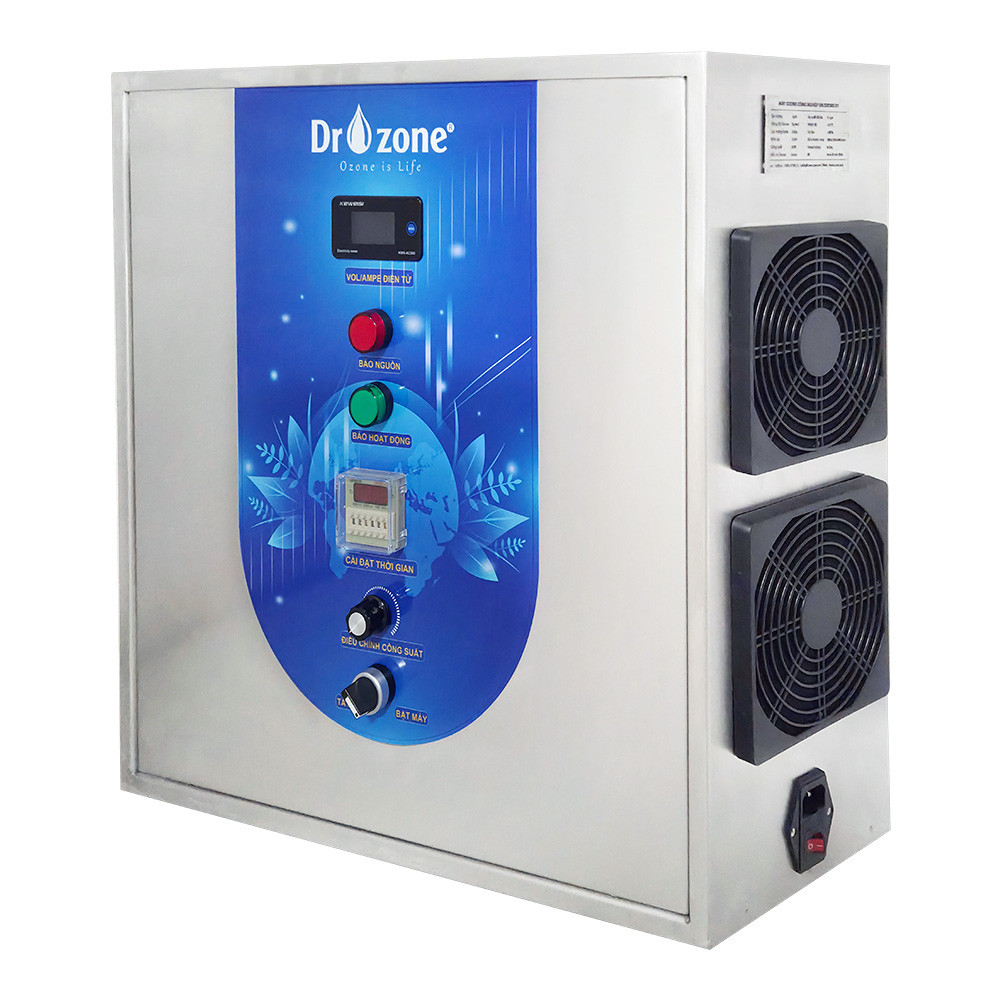

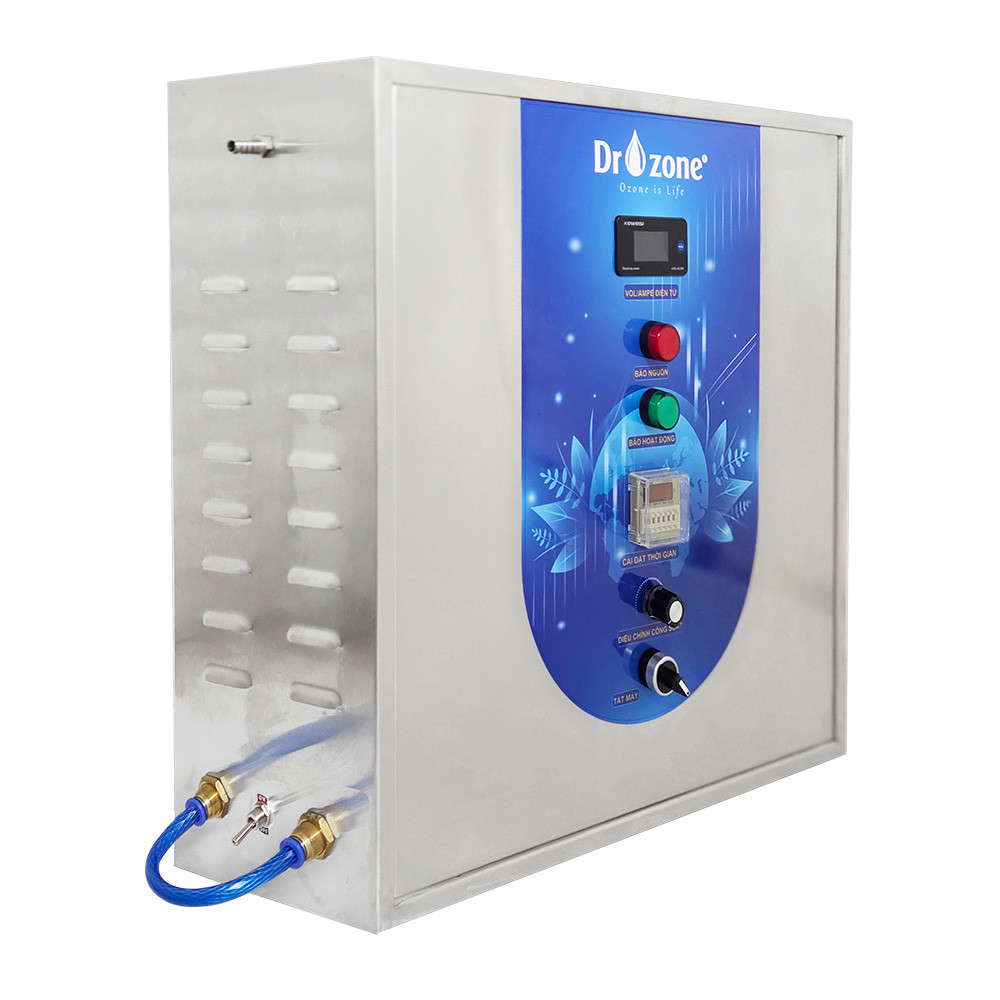

Dr.Ozone D10S Industrial Ozone Machine (10gO3/h)

Upgraded Features of the Industrial Ozone Generator Dr.Ozone D10S – Latest Version

The Dr.Ozone D10S industrial ozone generator has been enhanced with a series of advanced upgrades:

• Upgraded ozone generation module using a solid aluminum discharge tube combined with H20-Green water-cooling technology, enabling rapid heat dissipation in the discharge chamber, minimizing ozone loss during operation, extending component lifespan, and ensuring long-term continuous performance.

• Adjustable ozone concentration from 0 to Max. All Dr.Ozone industrial ozone generators are equipped with adjustable ozone output control, allowing users to set the ozone production level from 0 g/h to Max (according to the machine’s specifications). This feature provides wide application flexibility and is a major technological advantage compared to low-cost ozone machines on the market.

• 60-second shutdown delay: When the machine is turned off, the cooling fan and air pump continue to run for an additional 1 minute to reduce temperature and push residual ozone out of the system, preventing internal oxidation of components.

• Exclusive inlet-air cooling system found only in Dr.Ozone industrial ozone generators.

• Enhanced cooling fan system, upgraded to 15 × 15 cm instead of the previous 12 × 12 cm model.

• New air filter system that effectively captures dust and moisture.

Detailed Construction

(Insert structure images / diagrams as required.)

Features and Operating Guide for the 10 g/h Ozone Generator Dr.Ozone D10S

The Dr.Ozone D10S comes with essential accessories including a power cord, silicone hose, Teflon ozone outlet tube, and an operation manual. Please refer to the manual for complete usage instructions.

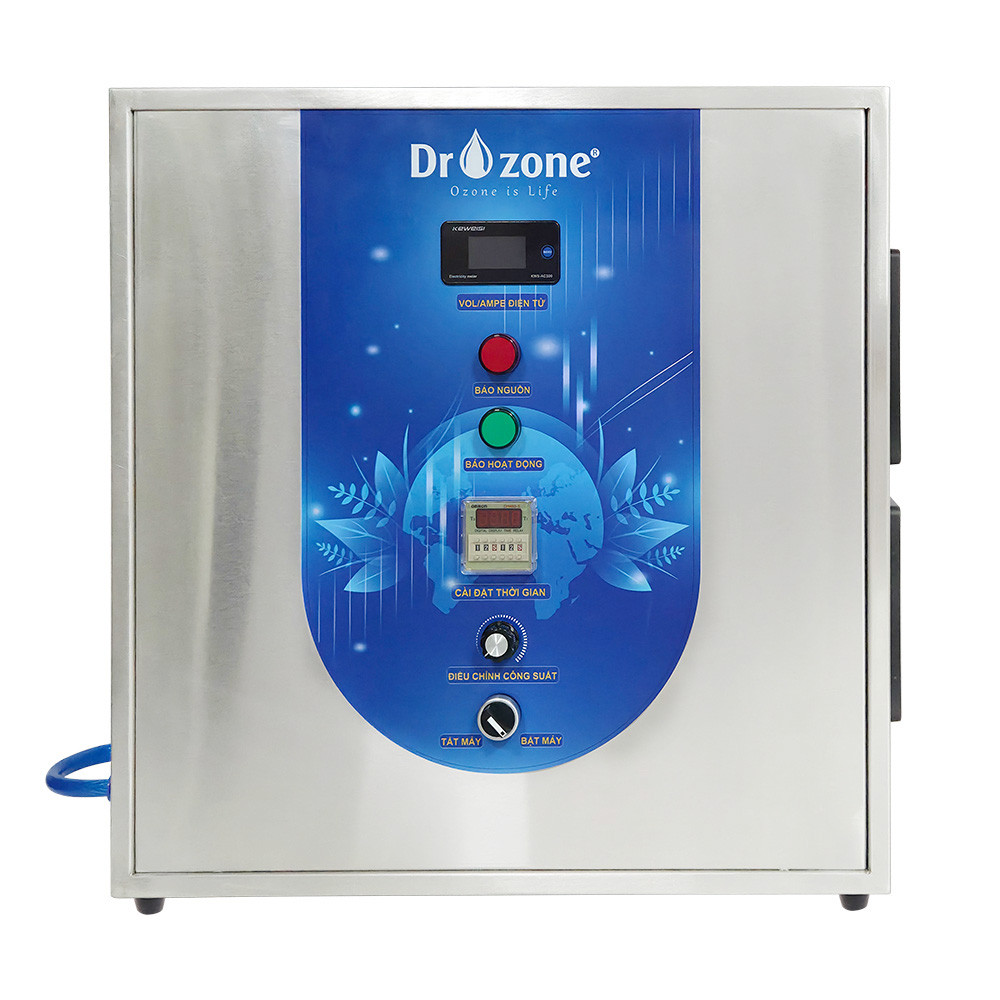

Control Panel

Users should connect the machine to a stable and independent power source of 220V/50Hz.
For optimal performance, place the machine in an environment with 5–23°C temperature and humidity below 70%.
Avoid outdoor placement or direct sunlight exposure.

The machine supports two operating modes:

• Continuous mode: The machine runs until manually stopped or powered off.

• Cycle mode: The machine operates according to the programmed Timer intervals, allowing alternating run/rest cycles.

Wide and Effective Application Range

With an output capacity of 10 g/h, the Dr.Ozone D10S is an ideal solution for a wide range of small to medium-scale applications:

Water Treatment

• Wastewater treatment: Color removal, deodorization, disinfection, and COD/BOD reduction for wastewater from small factories, clinics, and food processing facilities.

• Water supply treatment: Disinfection of intake water for production; chlorine-free sterilization for purified water, ice production, and beverage manufacturing.

• Aquaculture: Ozone disinfection in shrimp and fish tanks to prevent disease and improve water quality.

Air Treatment

• Industrial deodorization: Removal of odors from printing factories, plastic and rubber workshops, garbage storage areas, and small livestock farms.

• Space disinfection: Air sterilization in cold storage rooms, clean rooms, laboratories, and food processing plants to eliminate mold and bacteria.

Agriculture and Food Processing

• Washing and preservation: Ozone bubbling for cleaning vegetables, fruits, meat, and seafood to remove pesticide residues and surface bacteria, extending shelf life.

• Equipment disinfection: Using ozonated water to rinse utensils, tanks, and processing lines in food and beverage facilities.

If customers have any technical questions regarding operation, system integration, or ozone technology, please contact the support center at 0901.856.888 for consultation and assistance.
