Dr.Ozone D-150 Pro Industrial Ozone Generator with PLC Control

Introduction to the Dr.Ozone D-150 Pro industrial ozone generator

The Dr.Ozone D-150 Pro is designed to meet high ozone-demand requirements across a wide range of industrial applications, including water treatment, air sterilization, and specialized production processes.

Key highlights of the Dr.Ozone D-150 Pro

High ozone output
With an impressive ozone production capacity of 150 g/h, the D-150 Pro effectively supports large-scale treatment systems that require high and stable ozone concentration.

Modern PLC control system
The intuitive PLC interface allows users to precisely manage all operating parameters.

The display clearly shows real-time operating power (%), ozone generation status, ozone output (g/h), and gas pressure.

Users can easily start or stop the machine, adjust ozone output, and configure operating modes.

Stable performance
The D-150 Pro uses a high-purity oxygen supply at 30 L/min, ensuring stable ozone performance and high ozone concentration.

Optimized oxygen and gas system
• PSA oxygen generation technology produces 92% pure oxygen for consistent, high-quality feed gas.
• Integrated moisture separator removes humidity, enhancing ozone efficiency and prolonging machine lifespan.
• Industrial-grade air filtration removes dust and impurities to protect the ozone discharge chamber.
• Efficient water-cooling system maintains ideal operating temperature, ensuring durability.
• Closed-loop water-cooling system with specialized piping and cooling tanks provides optimal cooling performance while conserving water.

Durable construction
The housing is made from high-grade stainless steel, offering excellent corrosion resistance and long-term durability in harsh industrial environments.

Energy-efficient performance
The D-150 Pro operates at 3.7 kW, optimizing energy consumption while maintaining excellent treatment efficiency.

Comprehensive safety protection system

The Dr.Ozone D-150 Pro is equipped with a multi-layer safety system to ensure maximum protection for both operators and the equipment.

Standard Mitsubishi PLC system
• Cooling-water shortage protection: The machine stops and issues an alarm when water supply is insufficient
• Low oxygen concentration protection: The system halts operation when oxygen input levels fall below safety thresholds
• Audible alarm: Alerts users immediately when an error occurs

Optional Siemens PLC system (upgrade upon request)
Beyond standard protections, optional advanced features include:
• Low ozone-concentration alarm
• Ozone outlet blockage or leakage alarm
• Overcurrent and overvoltage protection, with automatic shutdown to prevent overheating, circuit failures, or component damage

Customers who require enhanced protection features can contact Dr.Ozone for consultation and customized upgrade options.

Product configuration options

Option 1: Integrated ozone generator + oxygen generator
Option 2: Separate ozone generator + oxygen generator
Option 3: Ozone generator + oxygen generator + air compression and drying system
Option 4: Ozone generator + oxygen generator + air compression and drying system + discharge tube chiller
Option 5: Ozone generator + air compression and drying system + compressed-air filtration
Option 6: Ozone generator + air compression and drying system + compressed-air filtration + discharge tube chiller

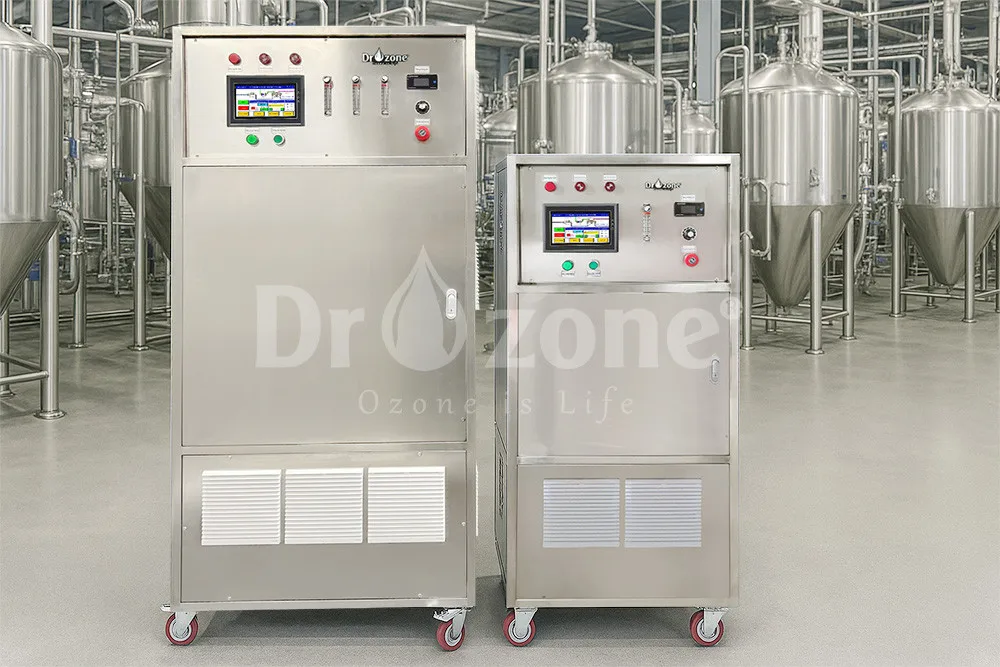

Refined and optimized design

The Dr.Ozone D-150 Pro is crafted with meticulous attention to detail, combining industrial durability with professional aesthetics:

• Modern vertical cabinet design that optimizes installation space
• Polished SUS 304 stainless-steel housing for enhanced durability and corrosion resistance
• Intuitive PLC control panel with clear LCD display and logically arranged buttons
• Optimized water and air-cooling system for superior temperature control
• Integrated mobility wheels for easy relocation and maintenance

These design elements create a well-balanced system that enhances both appearance and functional performance.

Smart and user-friendly operation

The advanced PLC control panel features a clear LCD display with well-organized function keys.
Users can easily adjust operating power, set operating modes, and monitor the machine’s status.
The intelligent indicator system provides timely warnings for issues such as overcurrent, insufficient cooling water, or low ozone flow, ensuring safe and efficient operation at all times.

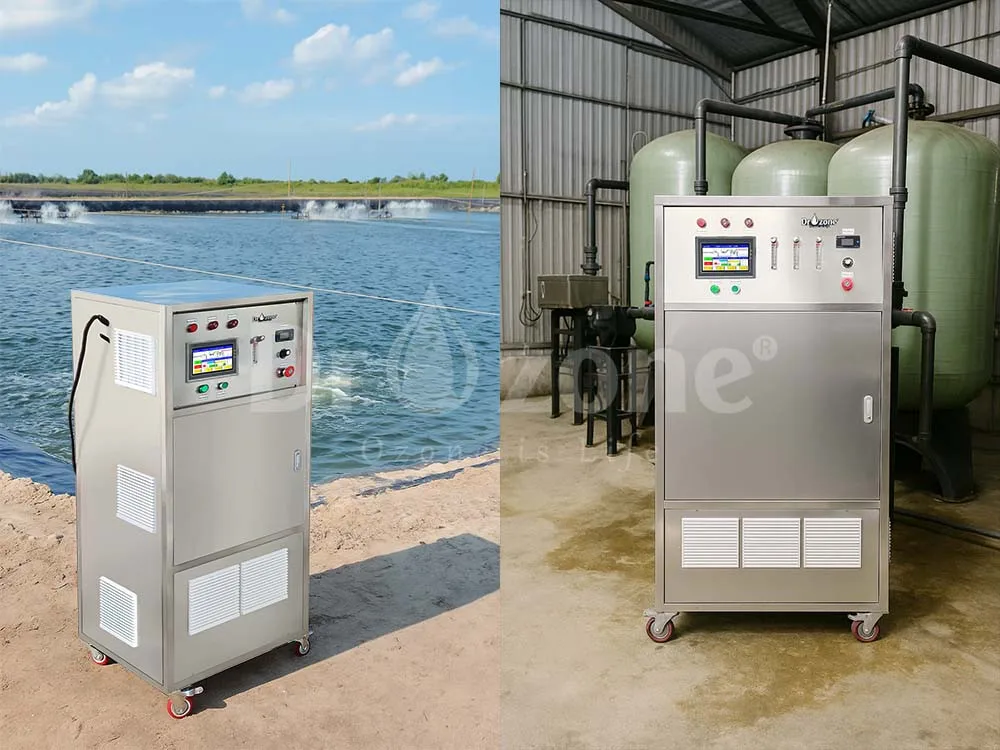

Industrial applications of the Dr.Ozone D-150 Pro

With its high ozone capacity and outstanding performance, the Dr.Ozone D-150 Pro is ideal for a wide range of industrial applications:

1. Water treatment
• Domestic water: Disinfection and removal of bacteria, viruses, mold, heavy metals, and pesticide residues
• Wastewater treatment: Breaks down harmful organic compounds in industrial, medical, and domestic wastewater
• Aquaculture: Improves water quality and reduces pathogens, enhancing livestock health and productivity
• Production water: Ensures hygienic standards for food, pharmaceutical, and cosmetic industries

2. Air sterilization
• Odor removal in factories, workshops, hospitals, hotels, and restaurants
• Air disinfection by eliminating airborne bacteria, viruses, and mold spores
• Post-harvest storage: Prevents mold development and extends shelf life of agricultural products

3. Additional industrial applications
• Bleaching processes in pulp, paper, and textile industries
• Surface cleaning and sterilization of industrial materials and equipment
• Oxidizing agent for specialized chemical synthesis

Conclusion

With its advanced features, stable performance, and intelligent design, the Dr.Ozone D-150 Pro stands as an optimal ozone-generation solution for modern industrial facilities.
Contact us today for consultation and product demonstration.
