Dr.Ozone D-200 Pro Industrial Ozone Generator with PLC Control

Introduction to the Dr.Ozone D-200 Pro industrial ozone generator

The Dr.Ozone D-200 Pro is designed to meet high ozone-demand requirements across a wide range of industrial applications, including water treatment, air sterilization, and specialized production processes.

Key highlights of the Dr.Ozone D-200 Pro

High ozone output
With an impressive ozone production capacity of 200 g/h, the D-200 Pro provides exceptional performance for large-scale treatment systems requiring high and stable ozone concentration.

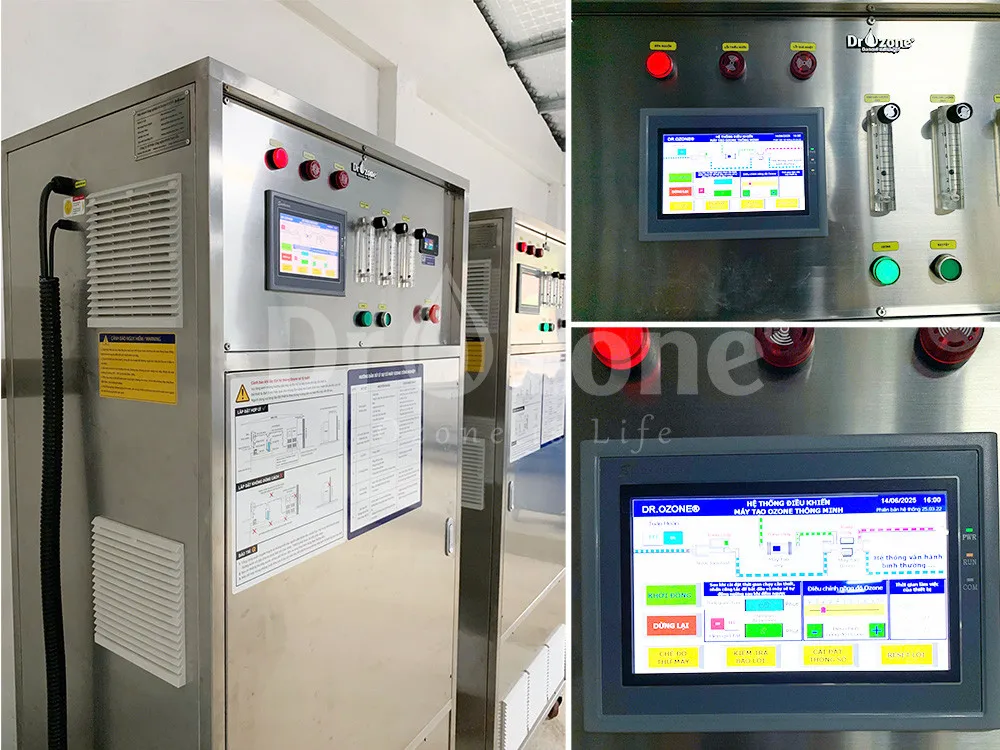

Modern PLC control system
The intuitive PLC interface allows precise and comprehensive control of all operating parameters.
The display provides clear real-time information such as operating power (%), ozone generation status, ozone output (g/h), and gas pressure.
Users can easily start and stop the machine, adjust ozone output, and configure operating modes.

Stable and efficient performance

• Uses a high-purity oxygen supply at 40 L/min, ensuring stable ozone output and high ozone concentration.
• PSA technology produces 92% pure oxygen for consistent, high-quality feed gas.
• Moisture-separation system removes humidity from intake air, improving ozone efficiency and extending equipment lifespan.
• Industrial-grade air filtration removes dust and contaminants, protecting the ozone discharge chamber.
• Efficient water-cooling system maintains optimal operating temperature, ensuring long-term reliability.
• Closed-loop water-cooling system with specialized piping and cooling tanks increases cooling efficiency and reduces water consumption.

Durable stainless-steel construction
The housing is made from premium SUS 304 stainless steel, offering excellent corrosion resistance and durability in harsh industrial environments.

Energy-efficient operation
With a total power consumption of 5 kW, the D-200 Pro is optimized for energy efficiency while delivering outstanding performance.

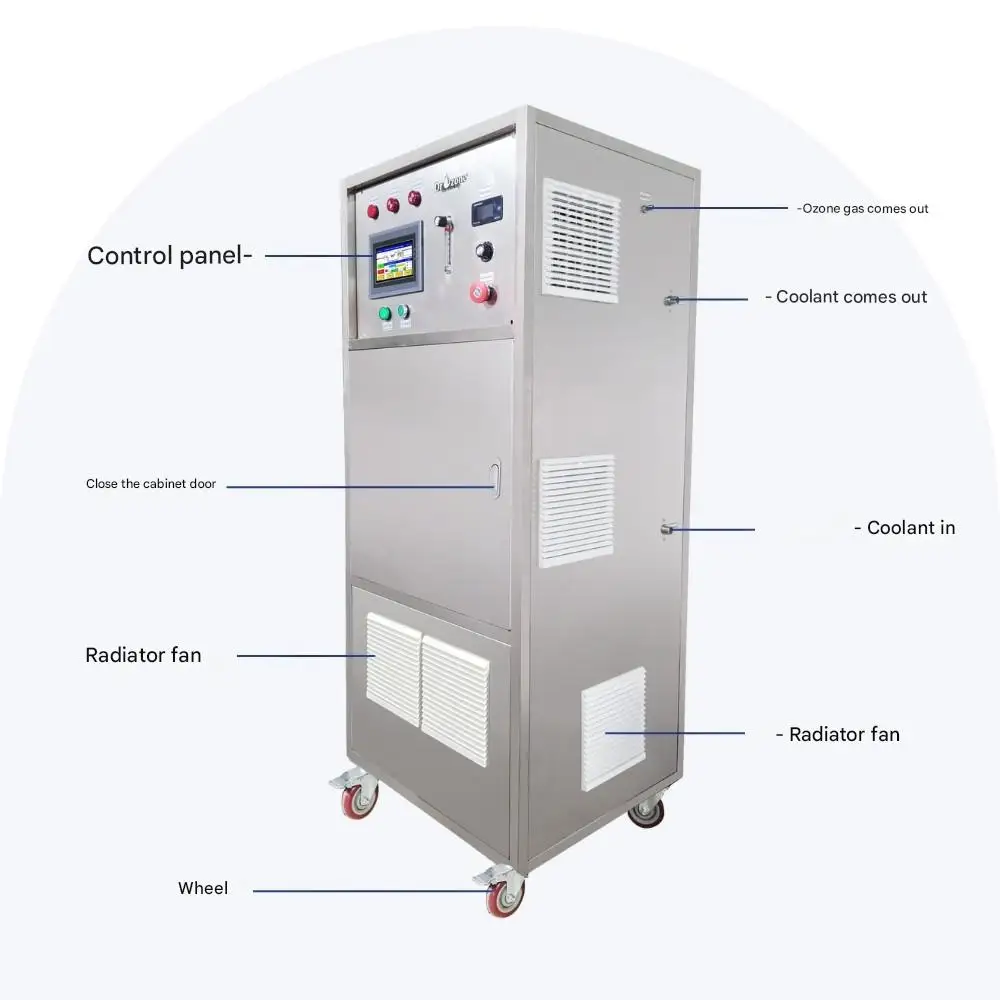

Structural features

The Dr.Ozone D-200 Pro is carefully engineered with a focus on both functionality and aesthetics:

• Modern vertical cabinet design that optimizes installation space
• Sleek stainless-steel enclosure for a premium industrial appearance
• Intuitive PLC control panel with clear display and logically arranged buttons
• Optimized water and air-cooling system ensuring stable temperature control
• Integrated mobility wheels for easy installation and maintenance

These elements combine to create a well-balanced system that enhances both durability and user experience.

Safety protection system

The Dr.Ozone D-200 Pro is equipped with a comprehensive, multi-layer protection system to ensure safe operation for both equipment and users.

Standard Mitsubishi PLC system
• Cooling-water shortage protection
• Low oxygen concentration protection
• Audible alarm for real-time fault notification

Optional Siemens PLC system (upgrade upon request)
Includes all standard protections plus:
• Low ozone-concentration alarm
• Ozone outlet blockage or leakage alarm
• Overcurrent and overvoltage protection with automatic shutdown to prevent equipment damage

Customers requiring enhanced safety features can contact Dr.Ozone for customized upgrade solutions.

Product configuration options

Option 1: Ozone generator + oxygen generator
Option 2: Ozone generator + oxygen generator + air compression and drying system
Option 3: Ozone generator + oxygen generator + air compression and drying system + discharge tube chiller
Option 4: Ozone generator + air compression and drying system + compressed-air filtration
Option 5: Ozone generator + air compression and drying system + compressed-air filtration + discharge tube chiller

(For detailed information on compatible accessories, see the “Accessories” tab.)

Industrial applications of the Dr.Ozone D-200 Pro

With its high ozone output and exceptional performance, the Dr.Ozone D-200 Pro is the ideal solution for a wide range of industrial applications:

1. Water treatment
• Domestic water: Disinfection and removal of bacteria, viruses, mold, heavy metals, and pesticides
• Wastewater: Treatment of industrial, medical, and domestic wastewater by breaking down harmful organic compounds
• Aquaculture: Improves water quality, reduces pathogens, and increases livestock productivity
• Production water: Ensures hygienic standards for food, pharmaceutical, and cosmetic manufacturing

2. Air sterilization
• Odor removal in factories, workshops, hospitals, hotels, and restaurants
• Elimination of airborne bacteria, viruses, and mold spores
• Post-harvest storage for agricultural products, inhibiting mold and extending shelf life

3. Additional industrial applications
• Bleaching processes in pulp, paper, and textile industries
• Surface cleaning and sterilization of materials and equipment
• Use as an oxidizing agent in chemical synthesis
