Dr.Ozone D-500 Pro Industrial Ozone Generator with PLC Control

Introduction to the Dr.Ozone D-500 Pro industrial ozone generator

The Dr.Ozone D-500 Pro is engineered to meet high ozone-demand requirements across a wide range of industrial applications, including water treatment, air sterilization, and specialized production processes.

Key highlights of the Dr.Ozone D-500 Pro

High ozone output
With an impressive ozone production capacity of 500 g/h, the D-500 Pro delivers outstanding performance for large-scale treatment systems that require high and stable ozone concentration.

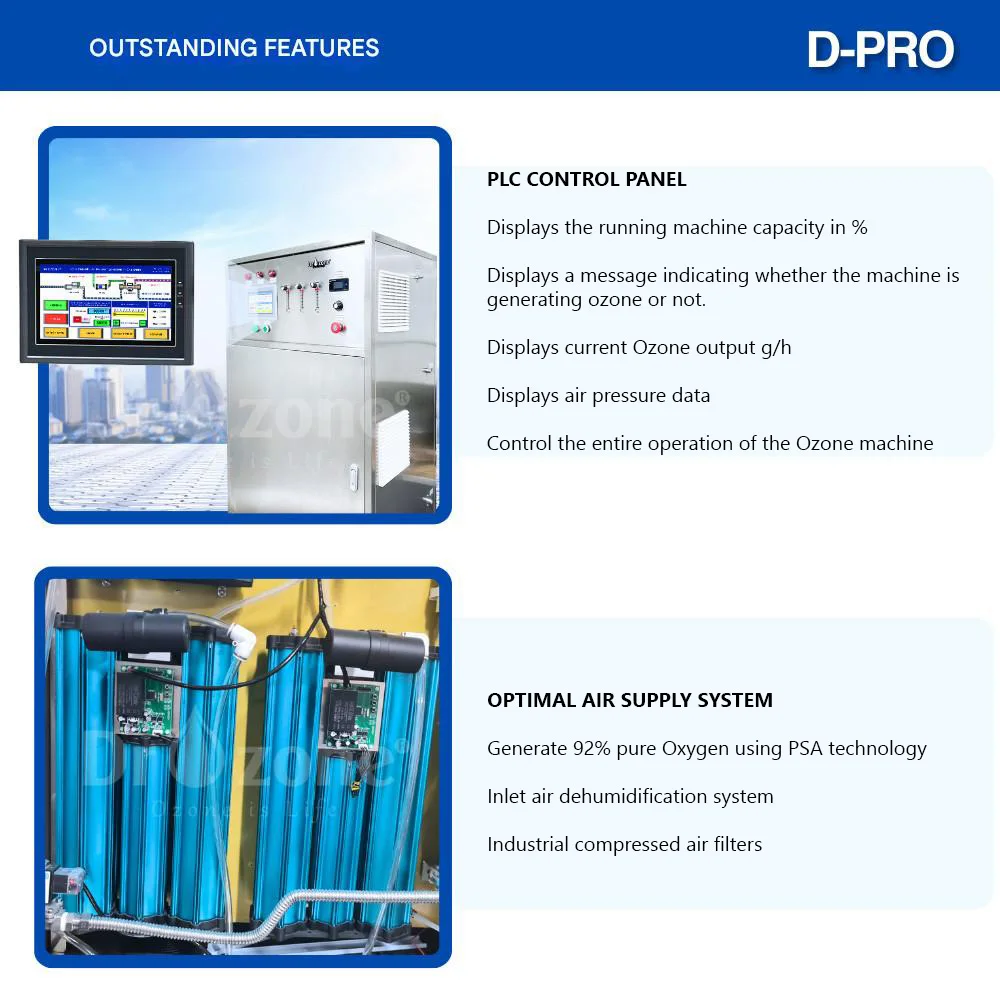

Modern PLC control system
The intuitive PLC interface enables precise and comprehensive control of all operating parameters.
Key information is displayed clearly, including operating power (%), ozone generation status, ozone output (g/h), and gas pressure.
Users can easily start or stop the machine, adjust ozone output, and configure operation modes as needed.

Stable and efficient performance

• Uses a high-purity oxygen supply at 80 L/min, ensuring consistent ozone production and high ozone concentration.
• PSA oxygen generation technology produces 92% pure oxygen for high-quality feed gas.

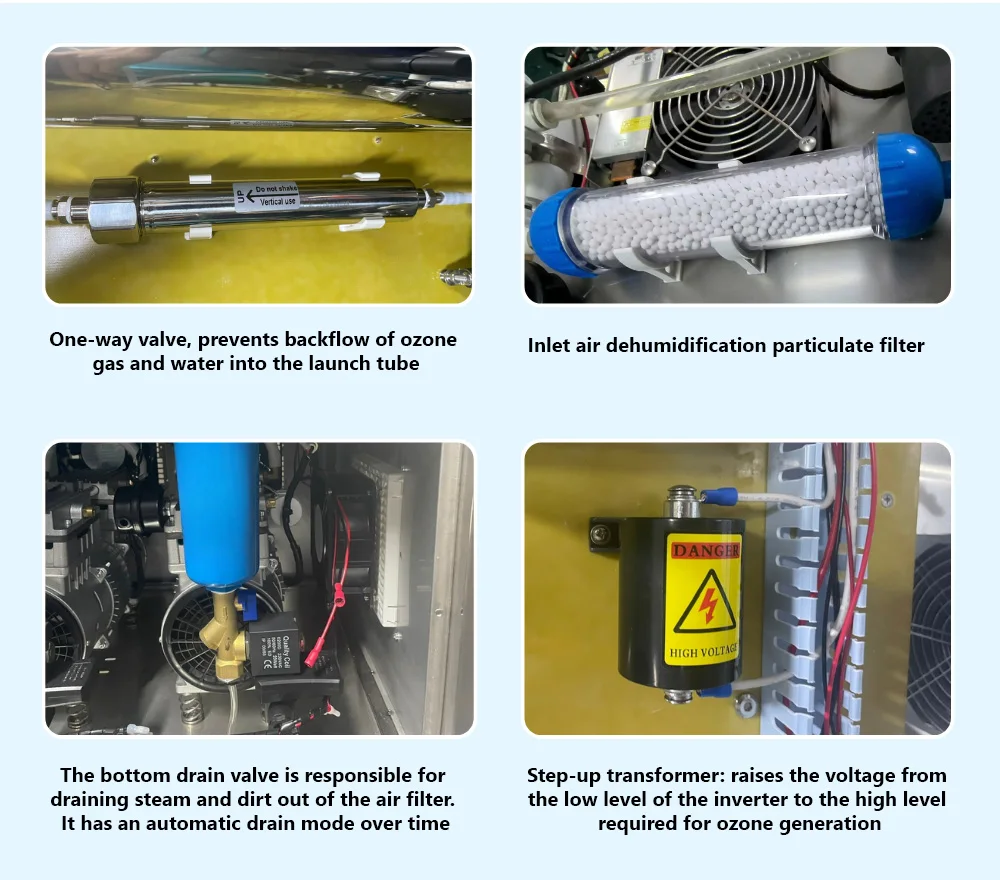

• Integrated moisture separator removes humidity to improve ozone generation efficiency and extend equipment lifespan.
• Industrial-grade compressed-air filtration removes dust and impurities, protecting the ozone discharge chamber.
• Efficient water-cooling system maintains ideal temperature for stable operation.
• Closed-loop water-cooling design incorporates dedicated piping and cooling tanks to increase cooling efficiency and minimize water consumption.

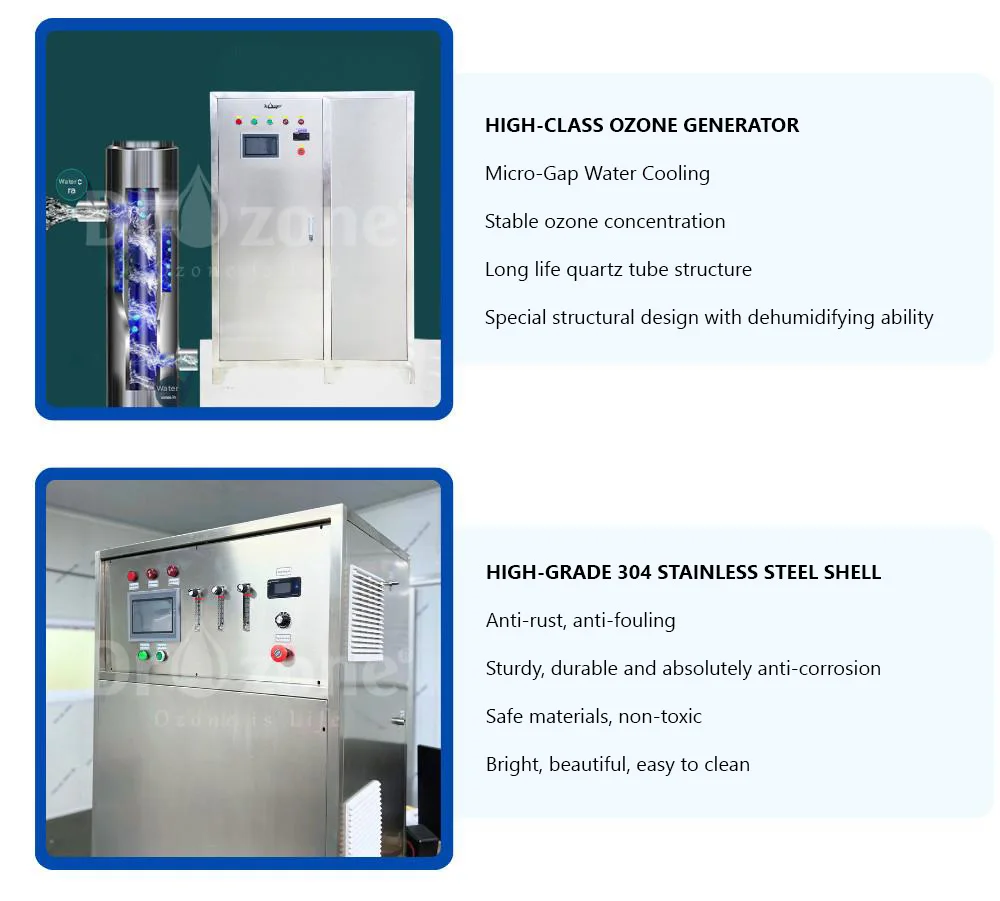

Durable stainless-steel construction
Premium SUS 304 stainless-steel housing provides excellent corrosion resistance and long-term durability in demanding industrial environments.

Energy-efficient operation
With a power consumption of 7 kW, the D-500 Pro offers optimized energy utilization while maintaining excellent treatment performance.

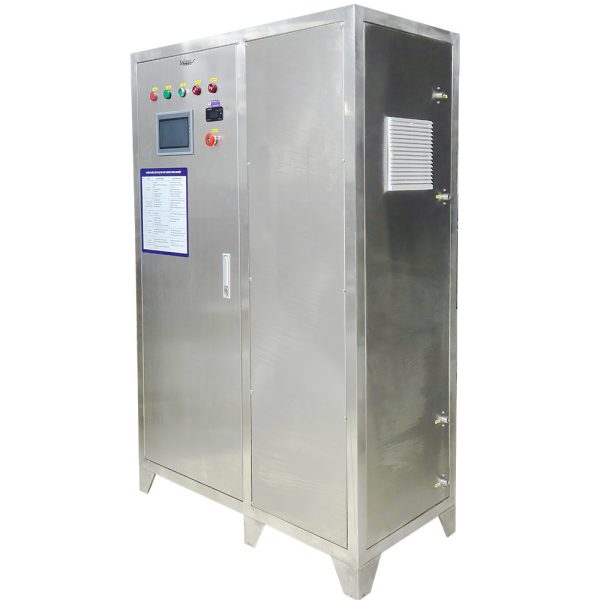

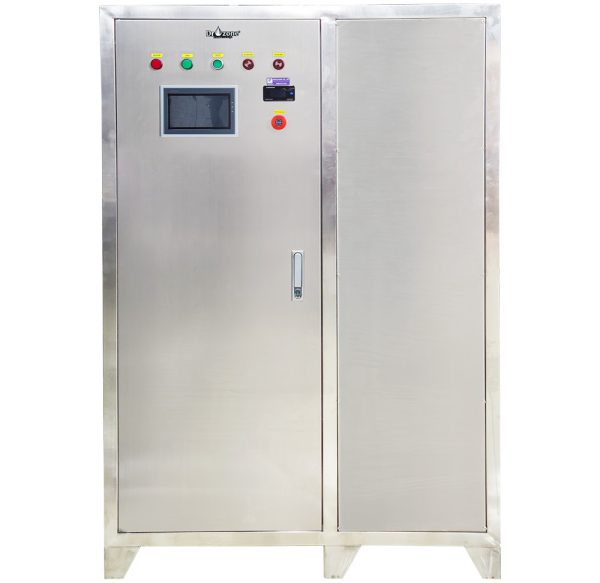

Structural features

The Dr.Ozone D-500 Pro is engineered with meticulous attention to detail, combining aesthetics with industrial-grade durability:

• Modern vertical cabinet design for efficient use of space
• Sleek stainless-steel enclosure for a professional and durable finish

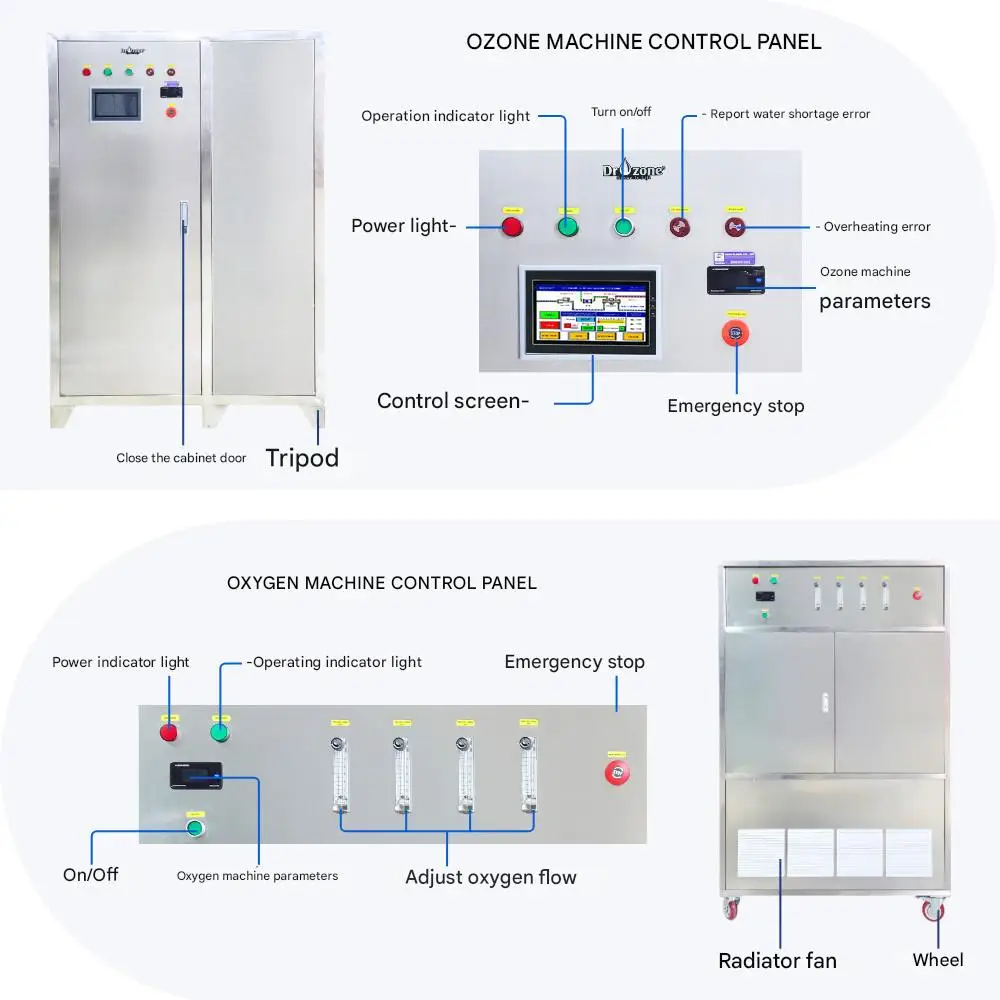

• Intuitive PLC control panel with clear display and logically arranged control buttons
• Optimized air and water-cooling systems ensure stable operation and extended equipment lifespan
• Integrated caster wheels allow easy relocation and maintenance

All design elements are carefully harmonized to enhance both performance and user experience.

Comprehensive safety protection system

The Dr.Ozone D-500 Pro is equipped with a multi-layer protection system to ensure safe and reliable operation.

Standard Mitsubishi PLC system
• Cooling-water shortage protection
• Low oxygen concentration protection
• Audible alarm for immediate fault notification

Optional Siemens PLC system (upgrade upon request)
Includes all standard protections plus:
• Low ozone-concentration alarm
• Ozone outlet blockage or leakage alarm
• Overcurrent and overvoltage protection with automatic shutdown to prevent damage to electrical components and the discharge chamber

Product configuration options

Option 1: Ozone generator + oxygen generator
Option 2: Ozone generator + oxygen generator + air compression and drying system
Option 3: Ozone generator + oxygen generator + air compression and drying system + discharge tube chiller
Option 4: Ozone generator + air compression and drying system + compressed-air filtration
Option 5: Ozone generator + air compression and drying system + compressed-air filtration + discharge tube chiller

(For full accessory specifications, refer to the “Accessories” tab.)

Industrial applications of the Dr.Ozone D-500 Pro

With its high output capacity and superior efficiency, the Dr.Ozone D-500 Pro is an ideal solution for a wide variety of industrial applications:

1. Water treatment
• Domestic water: Disinfection and removal of bacteria, viruses, mold, heavy metals, and pesticide residues
• Wastewater: Treatment of industrial, medical, and domestic wastewater by decomposing harmful organic pollutants
• Aquaculture: Improves water quality, reduces pathogens, and enhances animal health and productivity
• Production water: Ensures hygienic standards in food, pharmaceutical, and cosmetic manufacturing

2. Air sterilization
• Odor removal in factories, workshops, hospitals, hotels, and restaurants
• Elimination of airborne viruses, bacteria, and mold spores
• Prevents mold growth and extends shelf life of agricultural products during storage

3. Other industrial applications
• Bleaching processes in pulp, paper, and textile industries
• Surface cleaning and sterilization of equipment and materials
• Acts as an oxidizing agent in chemical synthesis processes

Conclusion

With its exceptional performance, stable operation, and intelligent design, the Dr.Ozone D-500 Pro stands out as a premier ozone-generation solution for modern industrial facilities.
