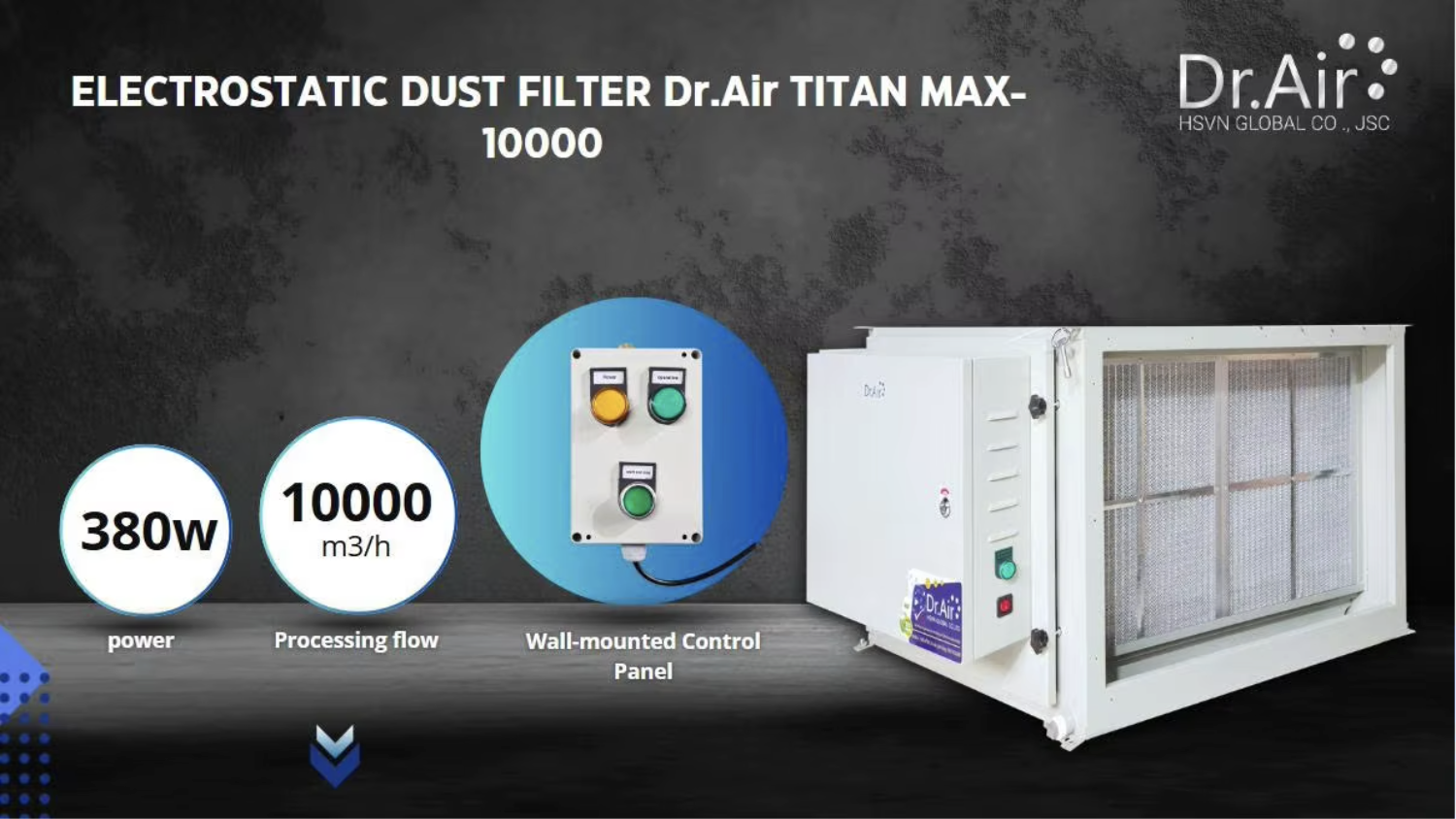

Dr.Air Titan MAX-10000 CO Exhaust Electrostatic Precipitator

The Dr.Air Titan MAX-10000 is one of the leading solutions for industrial exhaust treatment available today. Offering high performance and superior durability, this electrostatic precipitator significantly contributes to environmental protection and community health.

Structural Design

The Dr.Air Titan MAX-10000 is engineered to effectively remove dust and pollutants in industrial environments.

• Main Body: Constructed from durable powder-coated steel, ensuring excellent corrosion resistance. Compact dimensions (780 x 1130 x 640 mm) allow for installation in limited spaces.

• Suction System: Powered by a 380W fan motor, generating a powerful airflow of up to 10,000 m³/h for effective exhaust collection.

• Filtration System: Equipped with 2 pre-filters and an electrostatic filter cell, optimized to capture and filter dust particles and pollutants from the exhaust stream.

• Remote Controller: Connects directly to the machine and can be wall-mounted, allowing for easy monitoring and On/Off control.

• Electrical System: Operates stably at 220V/50Hz. The simple control panel allows users to adjust fan speed and operation modes.

Working Principle

The Titan MAX-10000 operates on the electrostatic field principle:

1. Ionization: A high-voltage power supply creates a strong electromagnetic field at the filter cell electrodes. Smoke and dust particles passing through are ionized and electrically charged.

2. Collection: These charged particles are then attracted to the collector plates (charged with the opposite polarity) and trapped on the surface.

3. Clean Air Release: The purified air is discharged through the outlet duct. This technology is recognized as a top-tier method for exhaust treatment.

Smart Choice for Every Enterprise

• Energy & Cost Saving: With a power consumption of only 380W, the Titan MAX-10000 is an eco-friendly choice that significantly reduces electricity costs. Investing in this unit ensures long-term economic efficiency.

• Versatile & User-Friendly: Suitable not only for industries but also for schools, hospitals, commercial kitchens, and commercial areas where air quality is critical.

• Easy Maintenance: The smart design allows for quick filter replacement and periodic maintenance without excessive time or effort, maintaining optimal cleaning performance.

• Safety First: Designed with high safety standards, it protects both users and the environment. It uses no chemicals and emits no toxins, using electricity solely to remove contaminants.

• Market Standard Compliance: Meets and exceeds industry standards for quality and performance, ensuring a reliable, long-term investment.

5. Convenient Wall-Mounted Controller

The separate controller offers maximum convenience:

• Remote Operation: Connects directly to the machine but can be mounted on the wall for safe and easy access.

• Intuitive Interface: Clear status lights for Power and Operation.

• Simple Control: Easy-to-use On/Off buttons streamline operation.

6. Reliable Durability

• Robust Build: Made from high-quality materials with a 0.6 mm casing thickness, enhancing durability in harsh industrial environments.

• Triple Filtration: Three filter stages enhance efficiency and maintain stable air quality.

• Flexible Integration: The 886 x 502 mm flange allows for easy connection to existing ventilation systems.

7. Industrial Applications

The Dr.Air Titan MAX-10000 is a cost-effective solution for various industries:

• Metal Industry:

  • Refining: Absorbs heavy metal dust and fine particles.

  • Casting & Machining: Collects dust from cutting, grinding, and polishing operations.

• Wood Processing:

  • Cutting & Milling: Collects fine wood dust to prevent respiratory issues.

  • Finishing: Removes impurities and fumes from painting and finishing processes.

• Chemical Industry:

  • Chemical Reactions: Absorbs and filters toxic vapors and gases.

  • Processing & Mixing: Prevents the spread of toxic fumes from chemical handling.

• Food & Beverage:

  • Processing: Eliminates dust from ingredients (flour, spices) to ensure hygiene.

  • Drying & Baking: Controls smoke and fumes from ovens to protect product quality and worker health.

8. Purchase & Contact Information

To ensure safety and optimal performance, it is essential to purchase genuine Dr.Air products.

We specialize in providing Dr.Air Titan MAX electrostatic precipitators in various capacities to meet your specific needs. For consultation and a quick quote, please contact us via Hotline: 090.185.6888.
