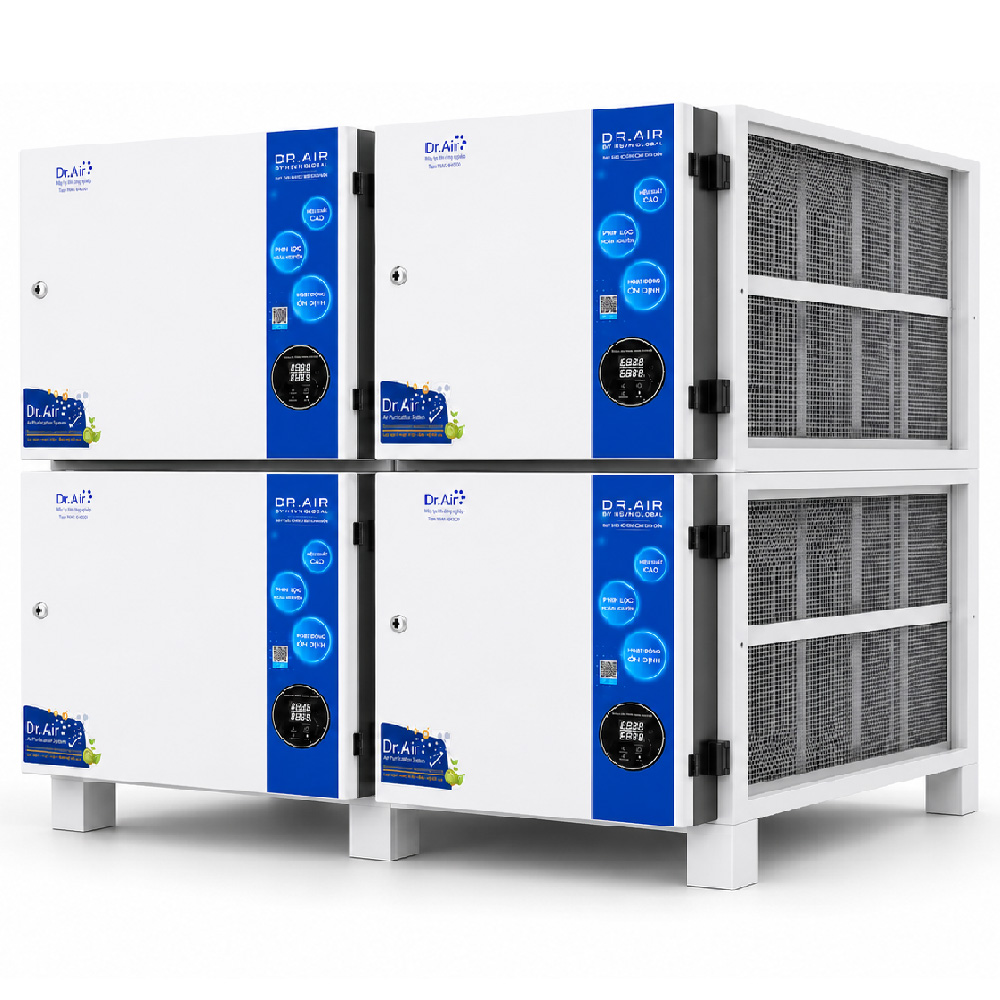

Dr.Air Titan MAX-G64000 Industrial Electrostatic Air Filtration System

Dr.Air Titan MAX-G64000 Electrostatic Air Filtration System is a high-performance industrial exhaust air treatment solution developed to handle large airflow volumes in factories and large-scale production facilities. The system effectively removes fine dust, smoke, oil mist, harmful fumes, and other airborne pollutants, helping businesses improve emission control and meet applicable environmental discharge requirements.

High Airflow Capacity:
With a processing capacity of up to 64,000 m³/h, the system is well suited for large factories, industrial workshops, and centralized exhaust ventilation systems.

Optimized Power Consumption:
The unit operates at 2400W, delivering high filtration performance while helping reduce energy consumption and long-term operating costs.

12 Electrostatic Filter Cells:
The system is equipped with 12 electrostatic filter cells, maximizing the capture of fine particles, smoke, oil mist, and other contaminants before the treated air is released into the environment.

Durable Construction:
The housing is manufactured from high-quality powder-coated steel, providing excellent corrosion resistance and stable operation in demanding industrial environments.

Flexible Design:
Its compact and modular structure allows the machine to be easily integrated into existing exhaust air treatment systems without requiring complex or costly infrastructure modifications.

The Dr.Air Titan MAX-G64000 industrial electrostatic precipitator delivers outstanding exhaust air filtration performance while providing a sustainable solution for industrial air pollution control. It helps improve workplace air quality, protect human health, reduce environmental impact, and support cleaner production operations.

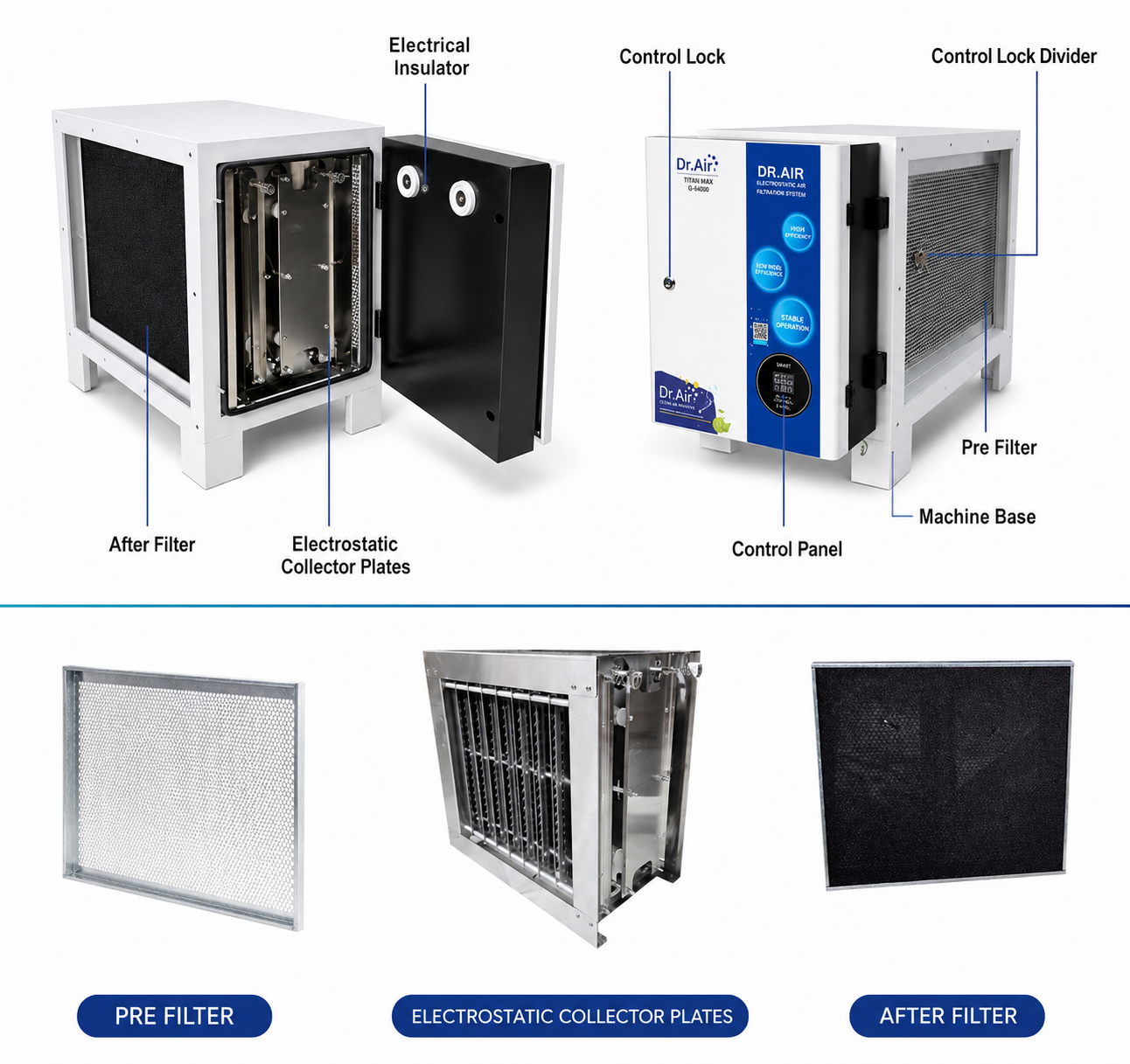

Detailed Construction

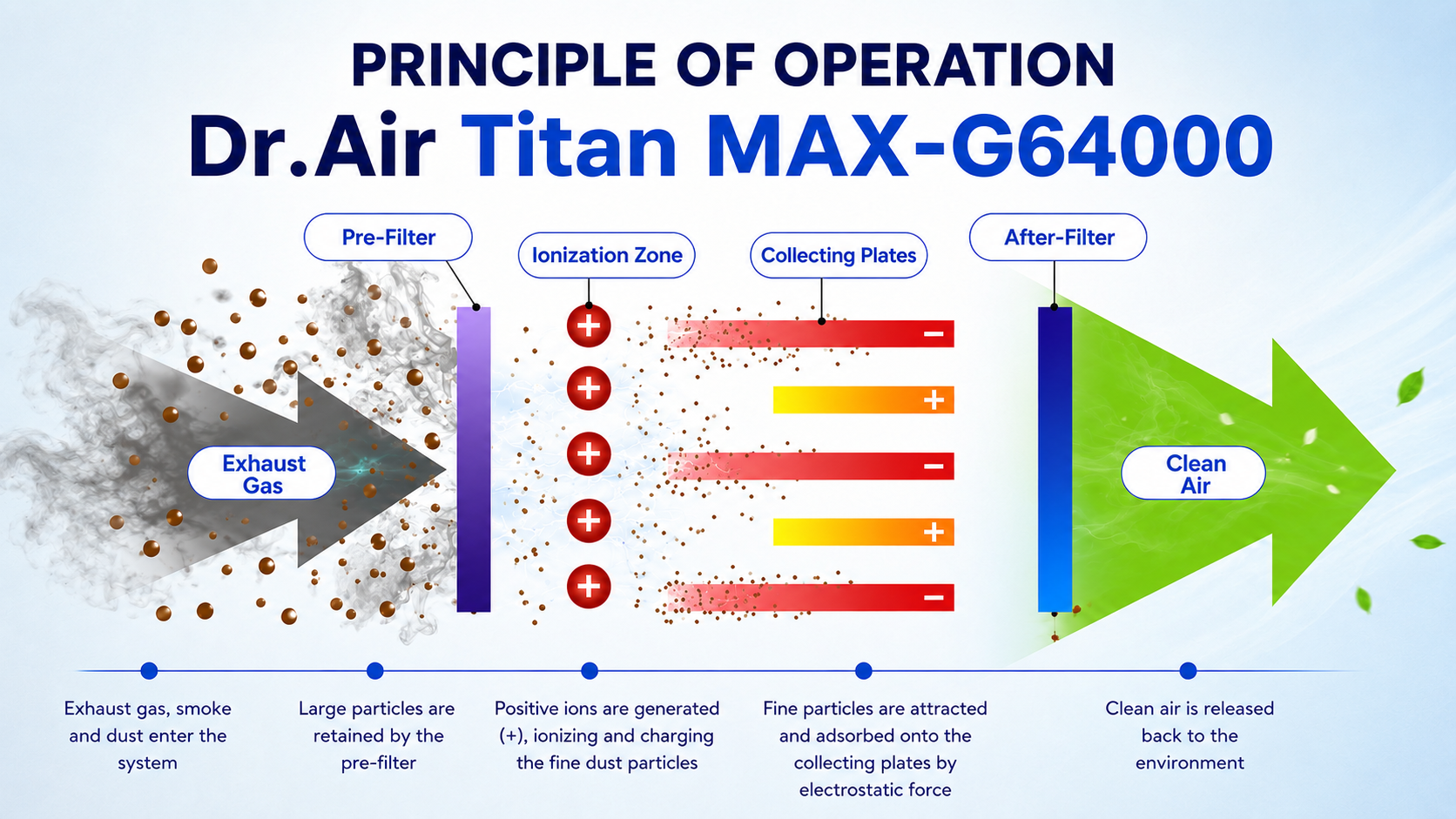

Operating Principle

Dr.Air Titan MAX-G64000 Electrostatic Air Filtration System operates using an electrostatic field to effectively remove dust particles and airborne pollutants, helping maintain a safer and cleaner working environment.

With advanced electrostatic filtration technology, the system captures even difficult contaminants such as fine dust and oil smoke through a closed four-stage process, achieving a filtration efficiency of up to 95%:

• Exhaust Air Collection: A high-capacity extraction fan draws air containing dust, smoke, and other contaminants into the filtration chamber through a flanged duct system.
• Particle Ionization: The airflow passes through a high-voltage ionization chamber, where dust and smoke particles are electrically charged.

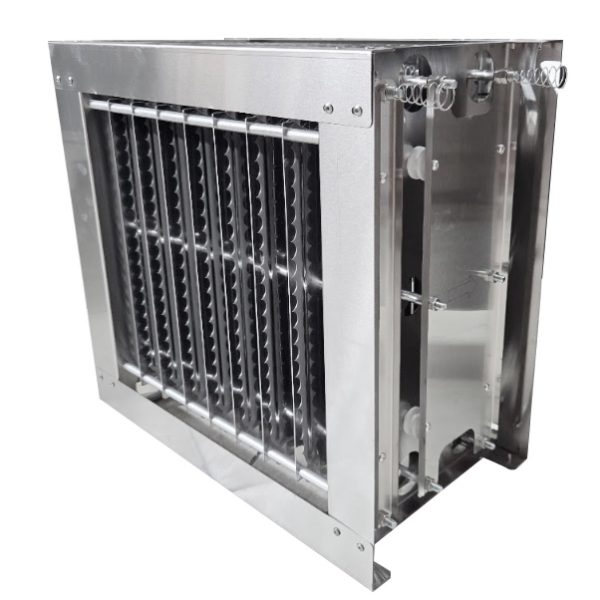

• Electrostatic Particle Collection: The charged airflow then moves through 12 stainless-steel electrostatic filter cells carrying the opposite electrical charge. Strong electrostatic attraction pulls dust, oil smoke, and other contaminants onto the surfaces of the collection plates, where they are securely retained.
• Clean Air Discharge: After filtration, the purified airflow meets safety requirements and is discharged back into the surrounding environment.

Advantages of the Electrostatic Air Filtration System

With its advanced specifications and high-capacity design, the Dr.Air Titan MAX-G64000 Electrostatic Air Filtration System offers several outstanding advantages, making it an ideal solution for industrial facilities that need to treat large volumes of exhaust air.

• Convenient Wall-Mounted Controller

The system is equipped with a separate control unit, providing greater flexibility and convenience during operation. Operators can control the machine without having to access the main unit directly.

The controller features clear power and operating-status indicators, allowing users to monitor the system quickly and easily. Its simple, intuitive ON/OFF switch is suitable for all users. The controller can also be permanently mounted on a wall at a convenient location, making daily operation faster, safer, and more efficient.

• High Airflow Treatment Capacity

With a processing capacity of up to 64,000 m³/h, the Titan MAX-G64000 can effectively meet the exhaust air treatment requirements of large factories, production workshops, and high-airflow ventilation systems.

• Compact Design and Easy Installation

Compared with conventional treatment systems such as cyclones or bag filters, the Dr.Air electrostatic filtration system has a significantly more compact design. This allows it to be easily installed and integrated into existing exhaust systems without requiring extensive space or costly infrastructure modifications.

• Durable Materials for Industrial Environments

The machine housing is made from powder-coated steel, providing good corrosion resistance and reliable performance under demanding industrial conditions. This durable construction helps ensure a long service life and stable operation over time.

• Energy-Efficient Operation

Despite its high airflow treatment capacity, the system consumes only approximately 2400W of power. This optimized energy consumption helps businesses reduce long-term operating costs while maintaining effective filtration performance.

• Low Maintenance Costs

One of the key advantages of electrostatic filtration technology is its low maintenance requirement. The system contains few moving parts and does not require frequent filter replacement like many conventional filtration technologies.

The electrostatic filter cells can be cleaned and reused, helping significantly reduce replacement, maintenance, and operating costs over the service life of the equipment.

Application of the Dr.Air Titan MAX-G64000 Electrostatic Air Filtration System in Waste Treatment and Recycling

During waste treatment and recycling processes, various types of dust and exhaust emissions may be released into the air. These pollutants often originate from the transportation, handling, sorting, and processing of materials such as paper, plastic, metal, and glass. Fine dust can also be generated during crushing, cutting, grinding, or shredding operations.

In addition, the decomposition of organic waste may release gases such as methane and carbon dioxide, along with volatile organic compounds (VOCs). These emissions can create unpleasant odors and may negatively affect worker health, surrounding communities, and the environment

The Dr.Air Titan MAX-G64000 Electrostatic Air Filtration System provides an effective solution for reducing airborne pollution in waste treatment and recycling facilities. With an airflow treatment capacity of up to 64,000 m³/h and a rated power of 2400W, the system is capable of removing dust and other suspended contaminants from large volumes of exhaust air.

Using advanced electrostatic filtration technology, the machine electrically charges and captures fine dust particles, smoke, and other airborne pollutants before they are discharged into the environment. This helps improve indoor and outdoor air quality, protect worker and public health, and support compliance with increasingly stringent environmental regulations.

Installing the Dr.Air Titan MAX-G64000 in waste treatment and recycling facilities can improve air-quality management while reducing the environmental and health risks associated with industrial emissions. It is an important step toward creating cleaner, safer, and more sustainable waste-processing operations.
