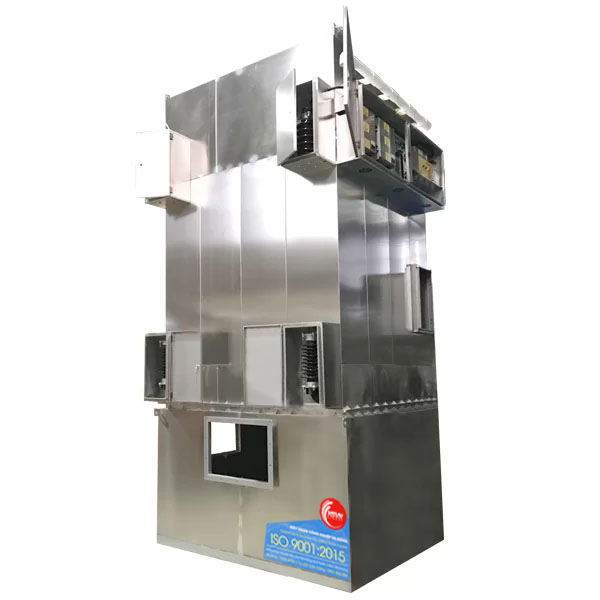

HS20000 Industrial Waste Gas Treatment Machine

  • Treatment capacity: 20000m³/h
  • Voltage: 380V/50Hz
  • Capacity: 15kW
  • Dimensions: 2470x2470x6800 mm
  • Number of tubes: 64
  • Pipe diameter: 219mm
  • Pipe height: 2950 mm
  • Case material: 1.5 mm thick stainless steel
  • Flange diameter: 800 mm

CUSTOMER CARE

  Contact Supplier Call us

High-performance HS20000 exhaust gas treatment tower, designed for industrial exhaust gas treatment of all technology industries, providing the highest air cleaning capacity according to QCVN 19: 2009/BTNMT, QCVN 20: 2009/BTNMT, QCVN51: 2017/BTNMT,… The machine has a processing capacity from 5000 to 300,000m3/h, designed in modular form or parallel installation structure. Dust concentration when discharged can reach below 50mg/Nm3 or 0.5 – 20mg/Nm3.

Comparison table of treatment efficiency of HS exhaust gas filtration system

Treatment method Particle size Pressure drop Energy consumption Maintenance
Cyclone 10μm 50 – 100mmAq Short Easiest
Scrubber air scrubber tower 5 – 10μm 300 – 1000mmAq High Easy
Bag House Bag Filter 0.1μm 150 – 250mmAq Medium Difficult
HS exhaust gas treatment machine 0.01μm 20mmAq Short Easy

Advantages of HS exhaust gas treatment machine

  • High processing efficiency of over 99%
  • Capable of filtering fine particles PM 0.1, PM1.0 and PM2.5
  • High temperature exhaust gas can be treated in dry or wet dust form.
  • Can be used to treat exhaust gases containing acids or corrosive substances.
  • Low system resistance, low operating costs, easy maintenance.
  • Automatic cleaning by pressure washer system, using water or diluted caustic solution.
