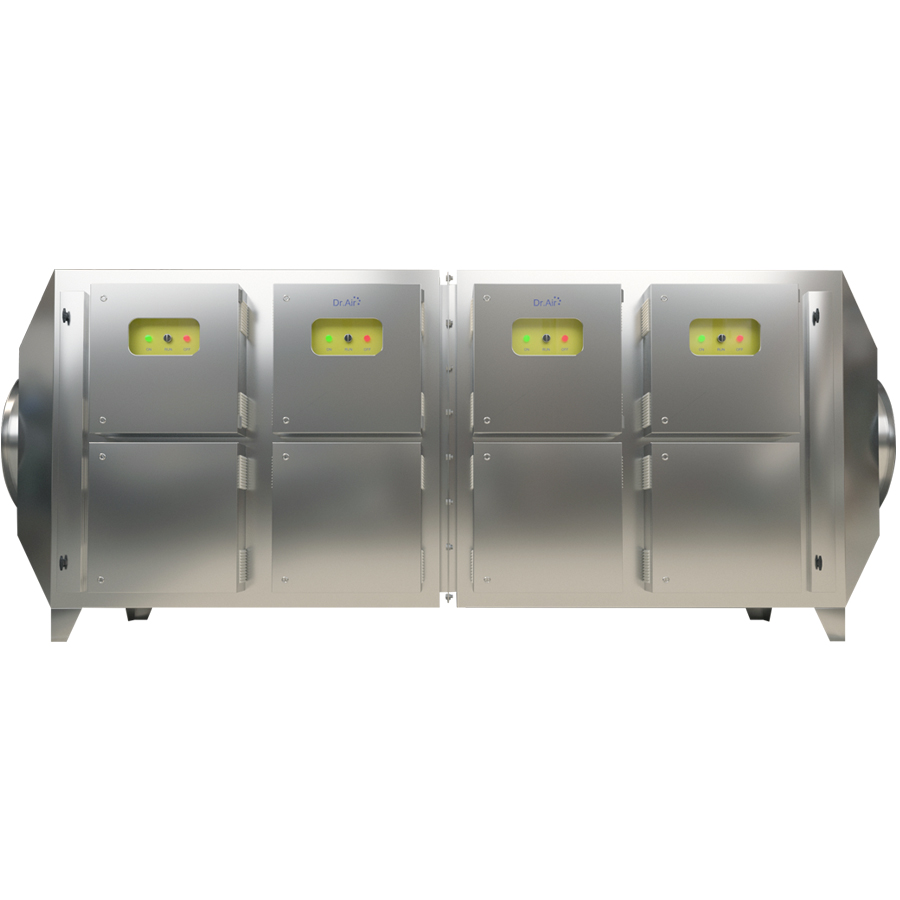

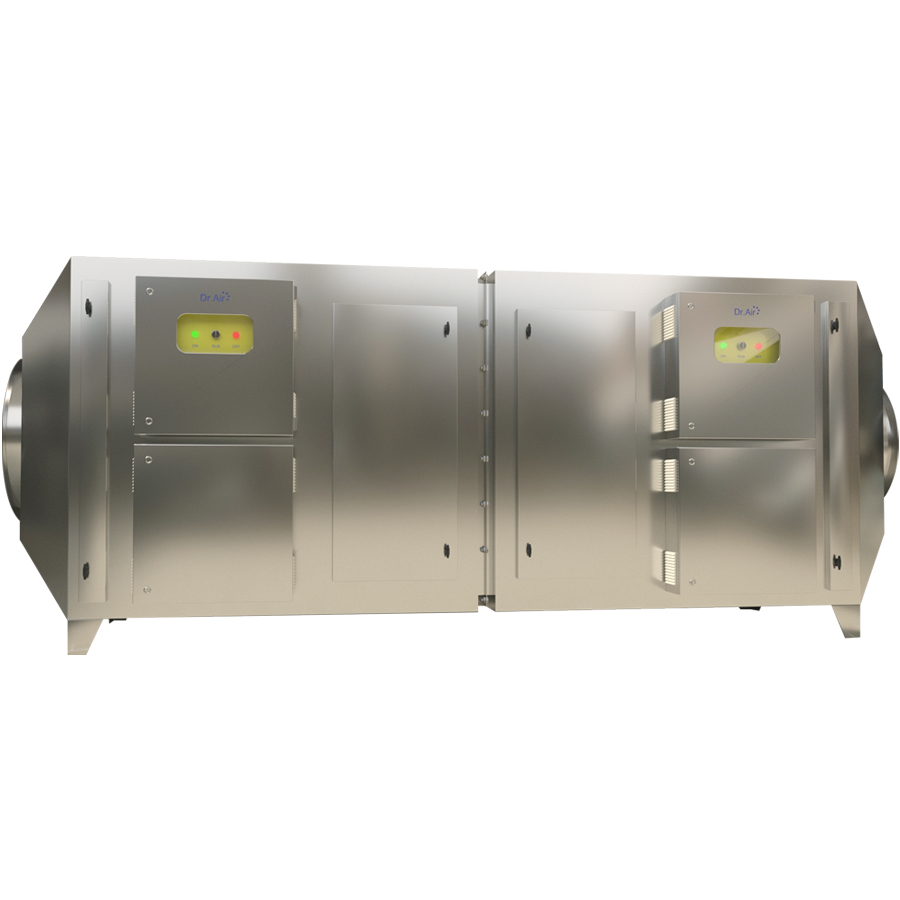

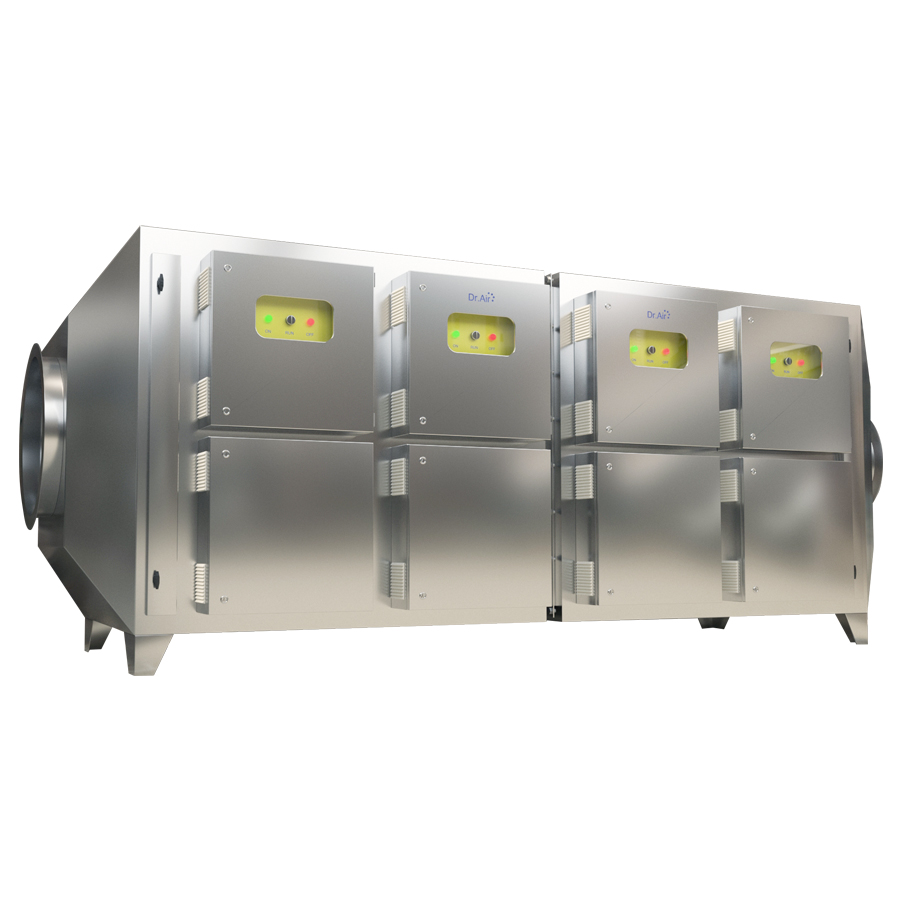

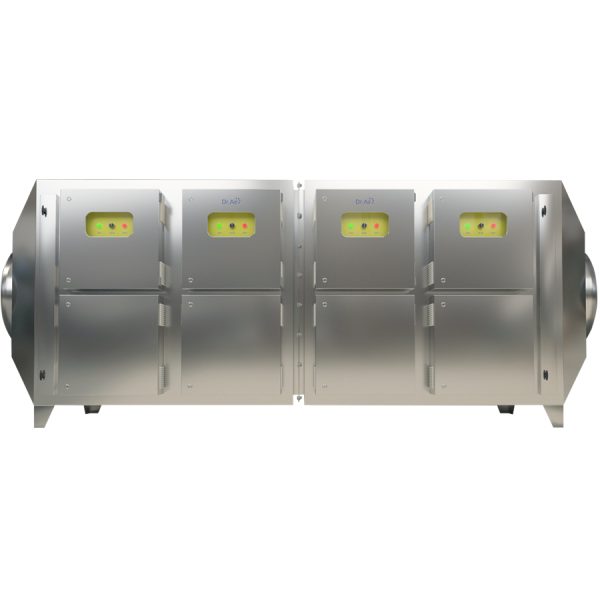

Dr.Air UV-50K Industrial Waste Gas Treatment UV Machine

  • Model: Dr.Air UV-50K
  • Processing capacity: 50000m3/h
  • Voltage: 380 VAC
  • Flow rate: 50000 m³/h
  • Dimensions (mm): 4100 x 1850 x 2400
  • Power (W): 18000
  • Number of UV bulbs: 120
  • Flange: Ø 950
  • Pressure resistance: <150Pa
  • Material: stainless steel 201

CUSTOMER CARE

  Contact Supplier Call us

Dr.Air UV-50K industrial waste gas treatment UV machine is a product that harmoniously combines UV technology platform, combined with Ozone deodorization technology. The industrial waste gas treatment machine has high deodorization efficiency, does not use mechanical impact, does not cause noise, industrial design, does not leave residual chemicals, … Therefore, Dr.Air waste gas treatment machine is the perfect choice in industrial waste gas treatment.

When the exhaust gas is introduced into the system, it passes through a chamber consisting of an industrial UV lamp system. UV quickly affects toxic substances, breaking down their structure and destroying them. At the same time, UV shines on molecular oxygen, producing ozone (O3) – a gas with strong oxidizing and reducing properties. Accordingly, O3 oxidizes organic compounds, chemicals and odor-causing bacteria.

  • High processing efficiency, many times higher than traditional technology
  • Industrial design, easy installation
  • Simple operation and repair, not requiring much manpower
  • Low energy consumption
  • Environmentally friendly
  • Stable during use

Dr.Air Industrial UV Equipment Technical Specifications Table

Model Flow rate (m³/h) Dimensions (mm) Power (W) Number of UV bulbs Flange
UV-5K 5000 1350*1200*1160 2400 16 Ø 300
UV-10K 10000 2350*1200*1270 4800 32 Ø 500
UV-15K 15000 2350*1200*1570 6900 46 Ø 700
UV-20K 20000 2900*1300*1870 9000 60 Ø 650
UV-30K 30000 3800*1500*1900 13500 90 Ø 750
UV-40K 40000 4100*1850*2200 16500 110 Ø 850
UV-50K 50,000 4100*1850*2400 18000 120 Ø 950

Industrial application of UV machine for industrial waste gas treatment

UV catalyst equipment is mainly for industrial production sectors including:

  • Chemical industry
  • Paper manufacturing industry
  • Pharmaceutical industry
  • Rubber, tire, and car factory
  • Paint manufacturing and spraying factory
  • Wastewater and exhaust gas treatment plant
  • Textile manufacturing industry
  • Spice factory
  • Factory for producing livestock and poultry feed
  • Tobacco factory
