Dr.Air KTA-30000 Automatic Self-Cleaning Electrostatic Dust Collector

Product Description: Dr.Air KTA-30000 Heavy-Duty Electrostatic Precipitator (Auto-Cleaning)

1. Introduction

The Dr.Air KTA-30000 is an advanced solution for air pollution control, specifically engineered for large-scale workshops, factories, and industrial production areas.

Utilizing modern electrostatic technology, this machine effectively eliminates fine dust and toxic fumes, contributing to environmental protection and worker health. The standout feature of the KTA-30000 is its Automatic Filter Cleaning System, which minimizes maintenance downtime and ensures stable, long-term performance.

2. Filtration Principle

The Dr.Air KTA system employs a smart filtration structure to eliminate pollutants through a 4-stage process:

1. Primary Aluminum Pre-filter: Traps large debris (trash, large dust particles) and protects the internal components from pests.

2. Ionization Zone: Creates a high-voltage electrical field to positively charge incoming dust and smoke particles.

3. Collection Zone: The charged particles are attracted to and trapped by the collection plates, ensuring the air is thoroughly cleaned.

4. Secondary Aluminum Post-filter: Provides a final filtration step to ensure optimal air quality before discharge.

3. Exclusive Auto-Cleaning Technology

The Dr.Air KTA-30000 features a proprietary automatic cleaning system that offers distinct advantages for such a large machine:

• Time & Labor Saving: Eliminates the need for manual disassembly and cleaning of the 9 heavy filter cells.

• Peak Performance: Regular automated cleaning prevents clogging, ensuring the machine always runs at maximum efficiency.

• Extended Lifespan: Removing dirt and grease buildup prevents corrosion and wear on internal components.

• Smart Operation: The system automates the most demanding maintenance tasks, making it convenient and easy to use.

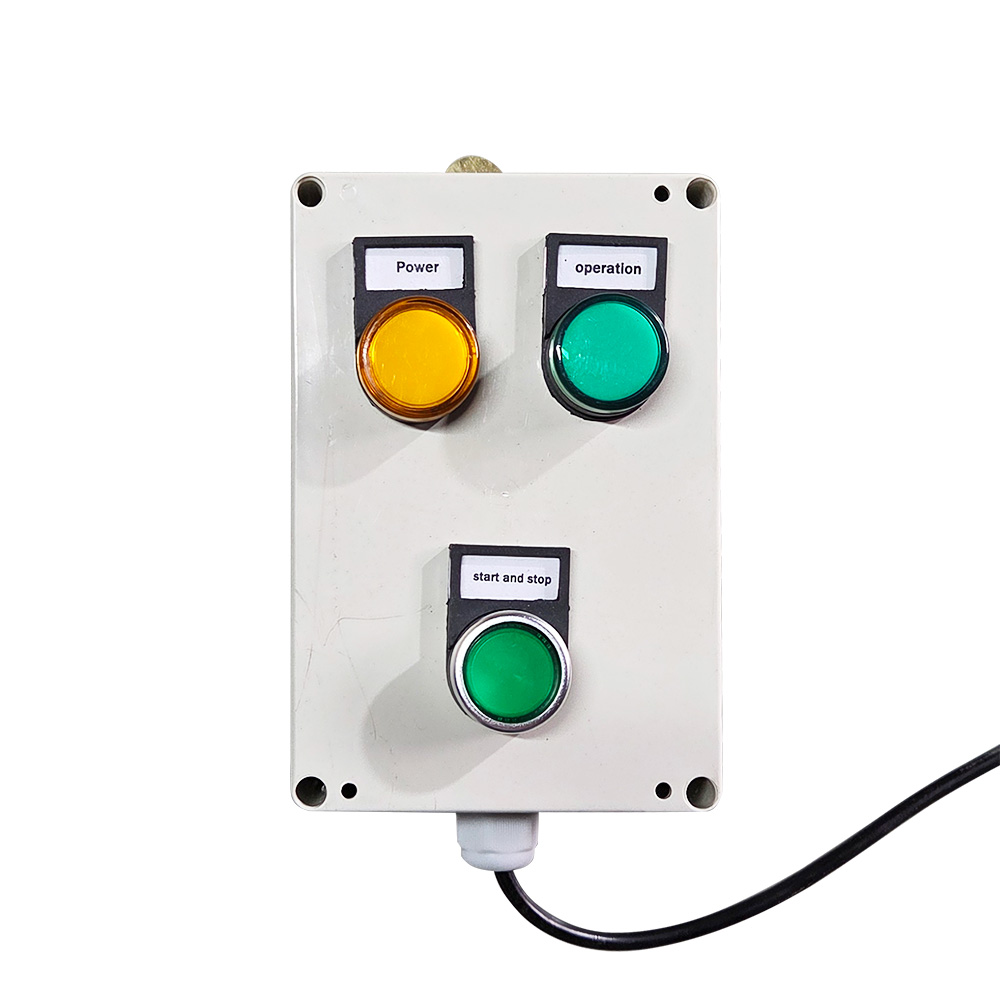

4. Convenient Wall-Mounted Controller

The remote control unit is designed for flexibility and safety:

• Remote Access: Connects directly to the machine but is mounted on the wall, allowing operators to control the unit safely from the ground.

• Intuitive Interface: Features clear status lights for Power and Operation.

• Simple Control: Easy-to-use On/Off buttons for quick management.

5. Detailed Construction (Cấu tạo chi tiết)

The Dr.Air KTA-30000 is a sophisticated industrial device designed for durability:

A. Main Body (Electrostatic Precipitator)

• Frame: Constructed from durable, corrosion-resistant powder-coated steel.

• ESP System: Utilizes 9 high-quality alloy filter cells designed to generate a strong electric field for ionization and collection.

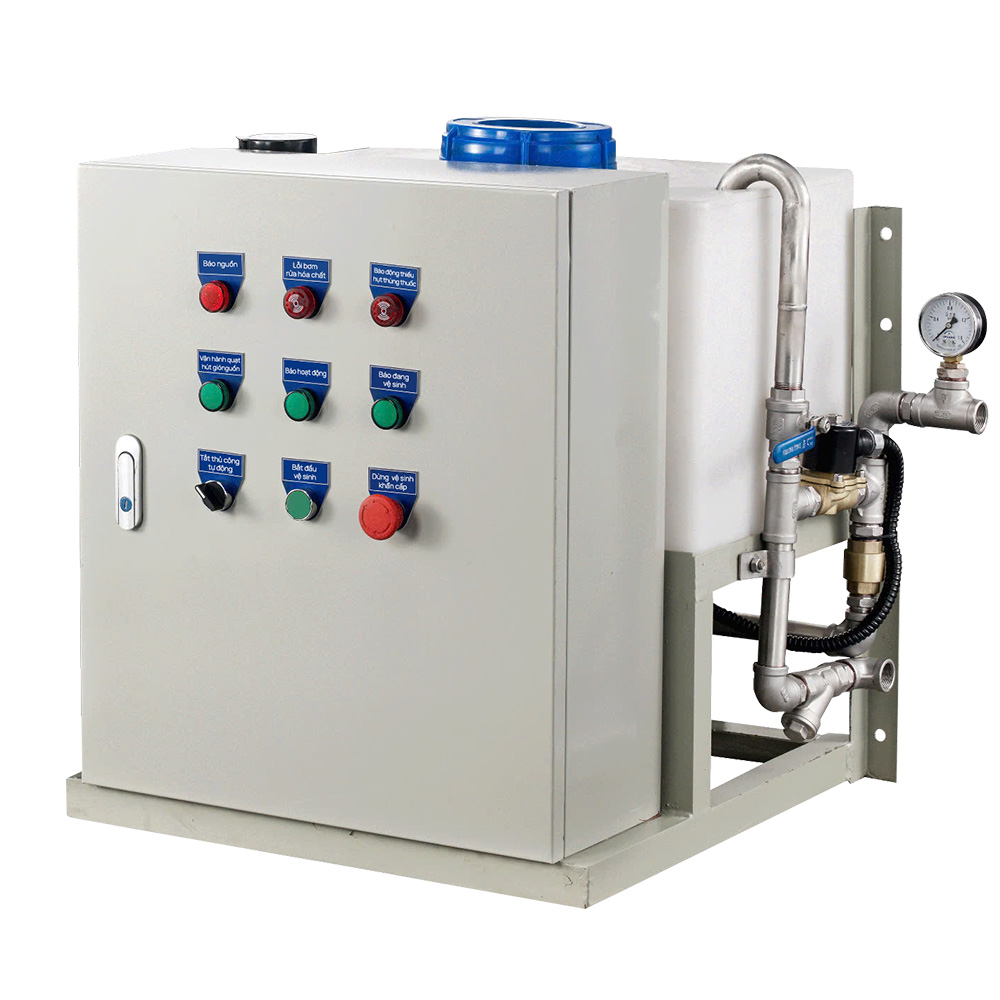

B. Auto-Cleaning Assembly

• Water Pump System: Pumps water from the tank through a booster valve to high-pressure spray nozzles, washing the filter cells directly inside the unit.

• Cleaning Controller: Monitors the process with smart alerts for pump errors, low water, or low chemical levels.

C. Wall-Mounted Control Panel

• Allows users to monitor status and toggle the ESP system remotely.

6. Superior Performance & Applications

With a massive airflow capacity of 30,000 m³/h, the Dr.Air KTA-30000 is suitable for:

• Large manufacturing plants and production facilities.

• Centralized exhaust systems for industrial kitchens, hotels, and restaurants.

• Areas with high emissions requirements.

Based on electrostatic principles, it removes up to 99% of ultra-fine dust, smoke, grease, bacteria, and other pollutants. The Dr.Air KTA-30000 is the reliable choice for meeting strict environmental and health standards.
