Dr.Air KT10000 Industrial Kitchen Electrostatic Smoke Purifier

Product Description: Dr.Air KT10000 Electrostatic Precipitator

1. Product Overview

The Dr.Air KT10000 Electrostatic Precipitator (ESP) is engineered with a high-efficiency configuration featuring electrostatic filter cells arranged horizontally, controlled by a unified system.

With a processing capacity ranging from 10,000 to 10,500 m³/h, this unit is perfectly suited for:

• Large-scale restaurants and commercial kitchens.

• BBQ and Hotpot chains.

• Exhaust treatment systems requiring an airflow capacity of under 10,000 m³/h.

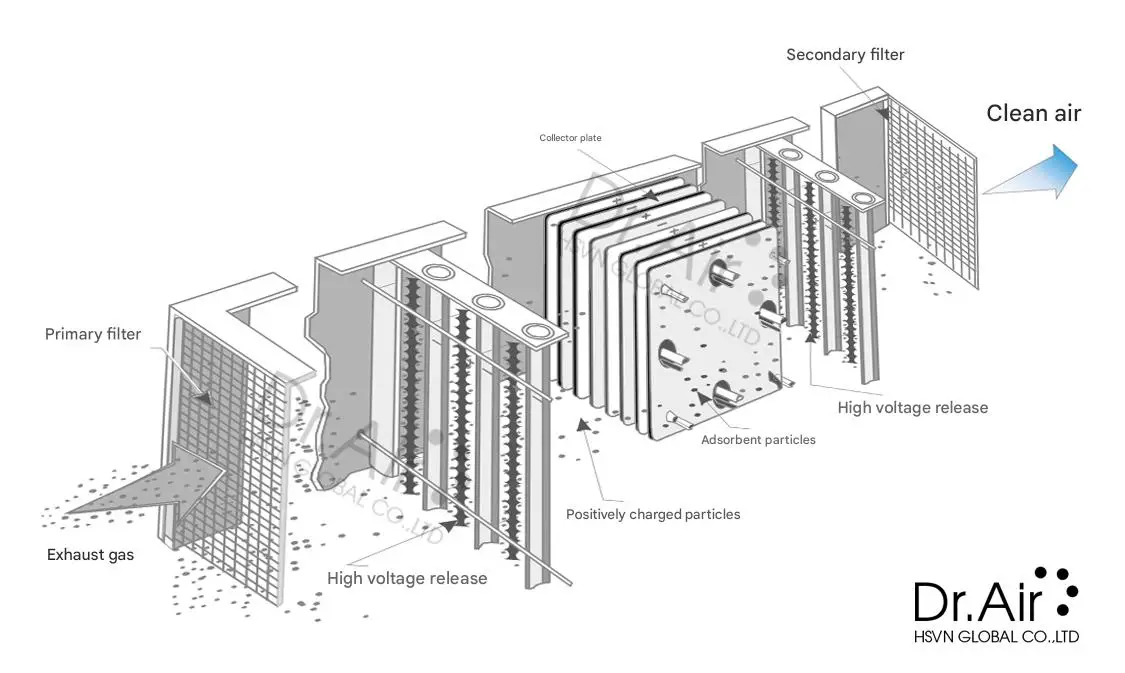

2. Working Principle: Tungsten Wire Technology

The core of the Dr.Air filtration system utilizes Tungsten wires to create a powerful electric field, key to ionizing airborne pollutants.

• Air Ionization: When an electric current passes through, the Tungsten wires emit positive or negative charges, ionizing dust particles and pollutants in the air.

• Strong Electric Field: These wires generate a high-voltage field between the filter plates.

• Collection: The ionized pollutants are magnetically attracted and firmly trapped onto the collection plates.

• High Efficiency: This process effectively removes microscopic particles invisible to the naked eye, significantly improving air quality.

• Durability: Tungsten allows for high heat resistance and long-term stability.

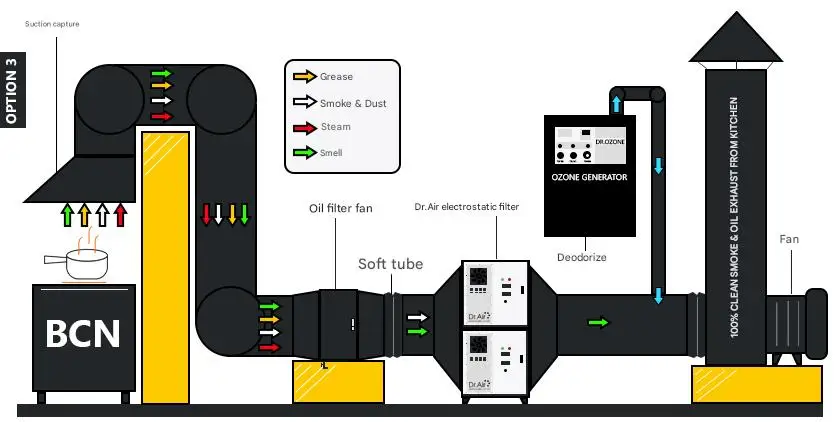

3. Comprehensive Kitchen Exhaust Solution

Dr.Air provides a complete simulation for treating industrial kitchen exhaust containing heavy grease, smoke, dust, and moisture. The optimal process includes:

• Stage 1: Oil & Moisture Separation

  • Uses a centrifugal/ultrasonic fan system to separate grease and eliminate water vapor.

  • Result: Almost complete removal of moisture and grease collection, allowing only smoke and odors to pass through.

• Stage 2: Smoke & Dust Destruction

  • Uses Dr.Air Electrostatic Precipitator (ESP) technology to eliminate smoke and fine dust particles.

• Stage 3: Odor Elimination

  • Uses Dr.Ozone technology (Canadian Ozone technology) to instantly neutralize odors with 100% efficiency.

Result: A perfect solution with 98% – 100% efficiency. The discharged air is odorless, smokeless, and free of grease buildup in the ducts, ensuring fire safety.
