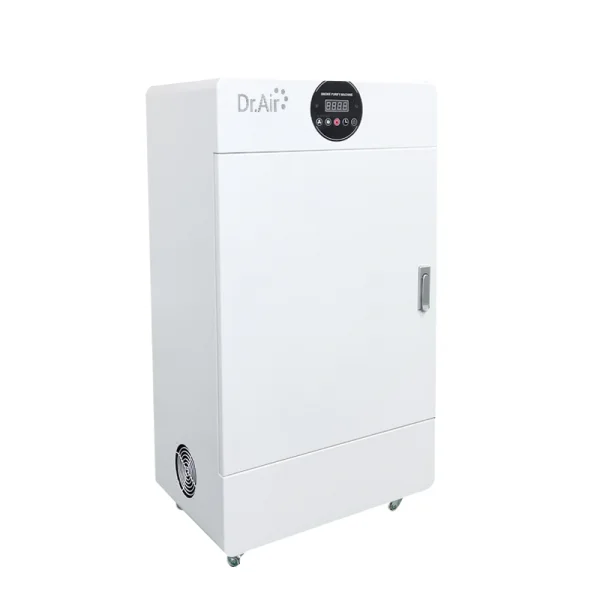

Dr.Air BM-302 Industrial Dust Collector

Product Description: Dr.Air BM-302 Mobile Welding Fume Extractor

1. Product Overview

Welding fumes not only harm the respiratory system but also reduce visibility and cause discomfort for workers. The Dr.Air BM-302 is the ideal solution for welding applications, designed to deliver high performance with flexible adjustments.

Configurable as a single or double station, this unit meets diverse user needs. Featuring a multi-stage filtration system (including filter bags, H13 high-efficiency elements, HEPA elements, and specialized gas filters), it effectively removes large particles and extends the lifespan of the main filter components.

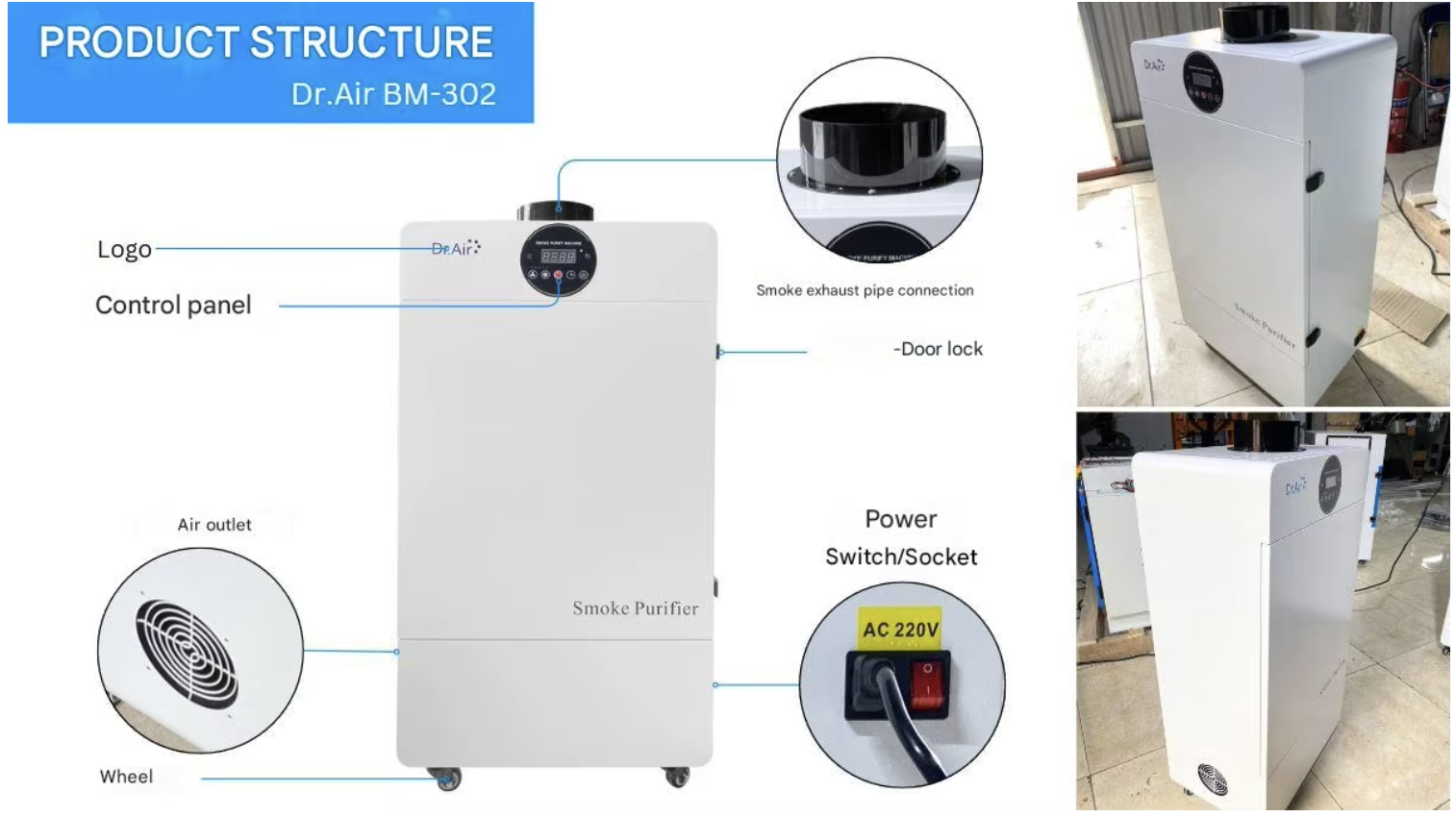

2. Structural Design & Specifications



The Dr.Air BM-302 is engineered for superior durability and efficiency. Key components include:

• Main Body:

  • Material: Crafted from stainless steel or anti-corrosive materials to withstand harsh working environments.

  • Dimensions: Compact design ($540 \times 360 \times 1010$ mm) that fits into workspaces without occupying excessive floor space.

• Suction Fan:

  • Power: Available in 800W or 1000W options.

  • Performance: Generates strong suction with airflow up to 1000 m³/h or 1200 m³/h, ensuring effective fume removal.

  • Motor: Specially designed for quiet operation, minimizing noise pollution.

• Filtration System:

  • Core: Available in 100 mm or 150 mm diameters.

  • Technology: Integrated PP (Polypropylene) membrane and Activated Carbon, ensuring the removal of fine dust and hazardous pollutants.

• Ducting & Hood:

  • Material: High-grade heat-resistant material for continuous operation.

  • Design: Flexible suction hood allows for easy angle adjustment to optimize fume capture from any position.

• Control Panel: Simple interface with On/Off buttons and speed adjustment knobs.

• Mobility: Integrated caster wheels allow for easy movement anywhere in the workshop.

3. Working Principle

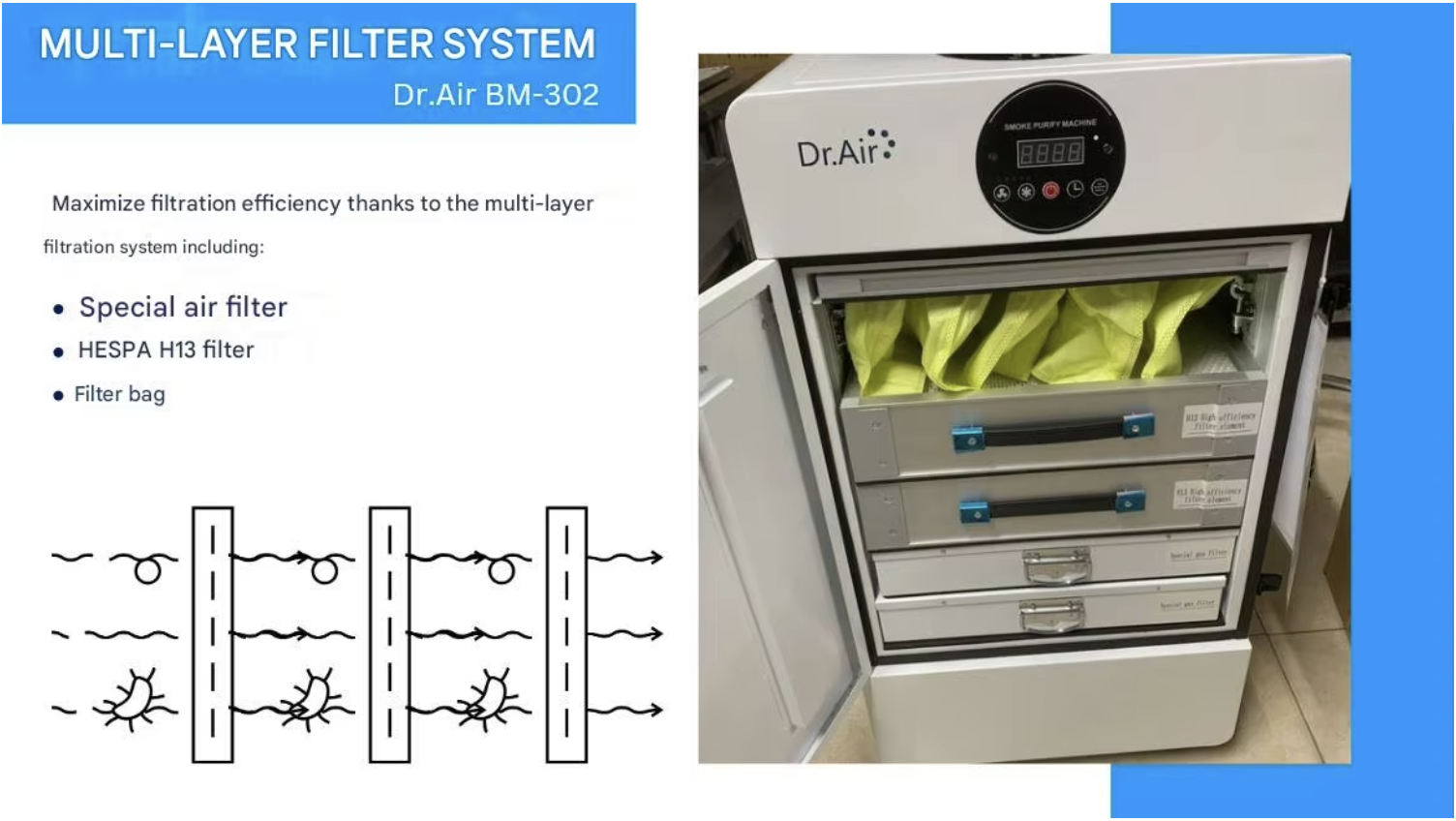

The Dr.Air BM-302 operates on a multi-stage filtration principle to ensure a safe working environment:

1. Suction: The powerful motor draws smoke, fumes, and dust from the welding source into the machine through the extraction arm.

2. Primary Filtration (PP Filter): The air passes through the Polypropylene (PP) filter, which captures large particles and debris. This stage protects the subsequent filters and extends their lifespan.

3. Secondary/Fine Filtration: The air is then pushed through a high-efficiency plate filter (or HEPA layer depending on configuration) to trap ultra-fine particles that passed through the first stage.

4. Recirculation: Cleaned air is discharged back into the environment or recirculated, ensuring safety for workers.

4. Key Features

• Robust Construction: Full metal frame design resists impact and vibration.

• Energy Efficient: The air recirculation system prevents the loss of indoor heating or cooling, saving energy costs.

• Brushless DC Motor: Ensures high power, quiet operation, and a long service life.

• Cost-Effective Maintenance: Filters (PP and Plate) can be replaced independently, reducing the cost of replacing the entire main filter assembly.

• Flexibility: Can operate in single or dual-arm modes with continuous airflow adjustment.

5. Applications

The Dr.Air BM-302 is a versatile device suitable for various industries and spaces:

• Welding: Removes toxic fumes from metal melting and additives.

• CNC Cutting: Extracts smoke, metal dust, and oil mist, protecting machinery and precision optical components.

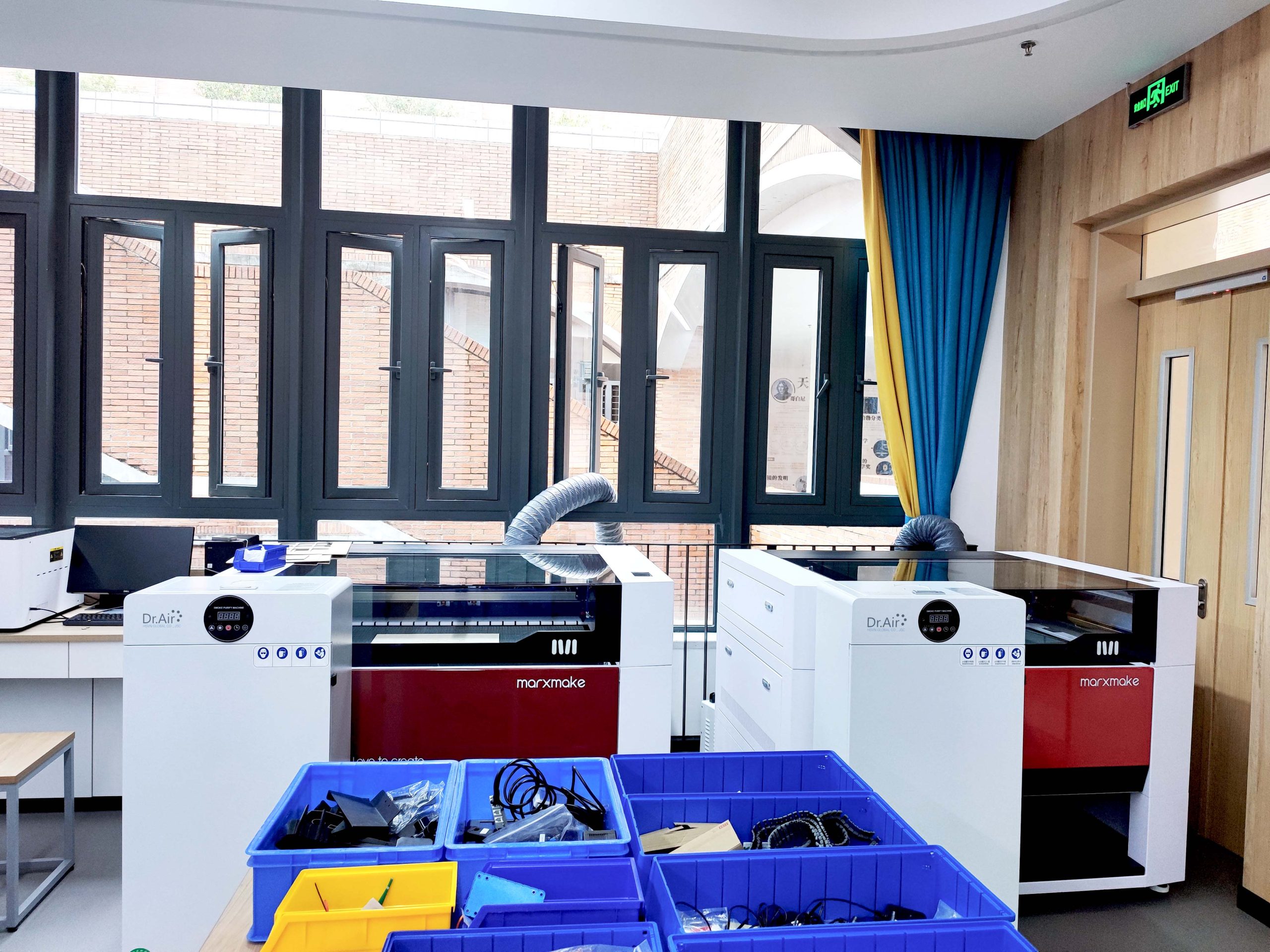

• Laser Cutting: Filters ultra-fine particles to maintain laser lens cleanliness and accuracy.

• Environments: Ideal for manufacturing workshops, R&D laboratories, vocational schools, and training centers.

6. Usage & Safety Guidelines

To ensure safety and optimal performance, please observe the following:

• Environment: Avoid placing the device in areas with strong magnetic fields, high temperatures, high humidity, or explosive risks.

• Maintenance: Clean and empty the dust collection hopper daily.

• Positioning: Keep the suction hood 10-15 cm away from the smoke source for best results.

• Ducting: Keep the duct length under 1.4 meters and minimize bends. If bends are necessary, make them as wide as possible to maintain suction pressure.

• Power: Turn off the power switch and unplug when not in use for extended periods.
